HEADER COVER REMOVAL/INSTALLATION

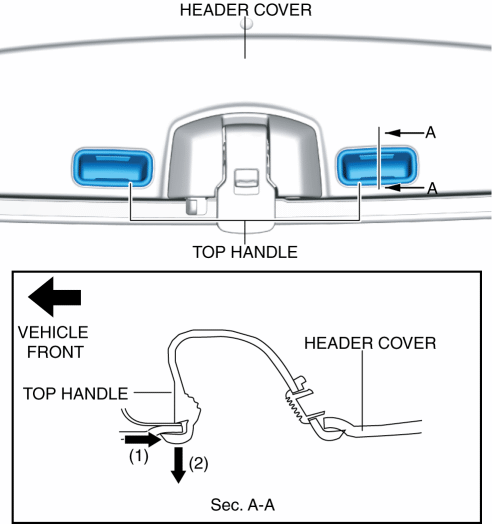

1. While pressing the top handles in the direction of arrow (1) shown in the figure, pull and remove them in the direction of arrow (2).

2. Remove the top lock cover.(See TOP LOCK REMOVAL/INSTALLATION.)

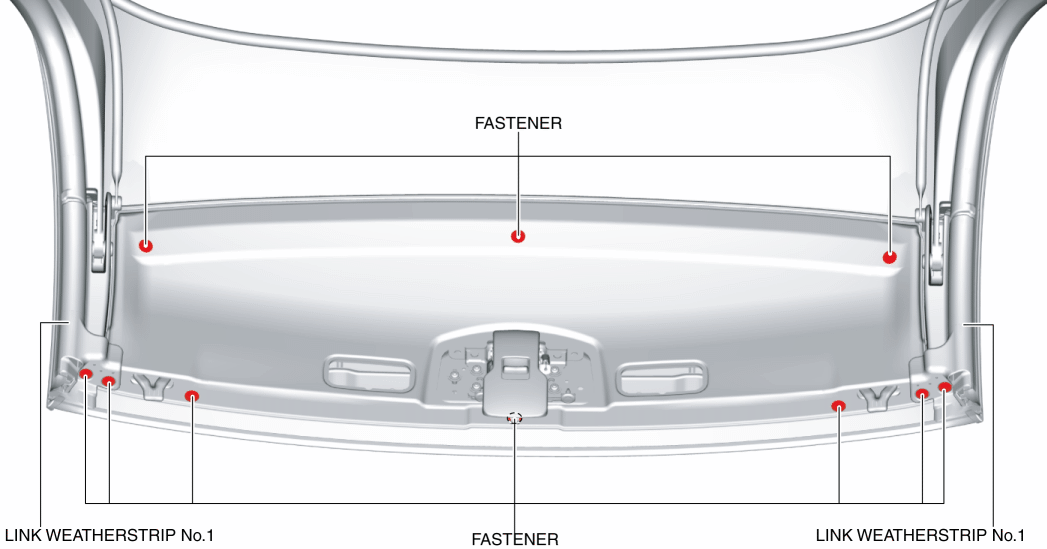

3. Remove the fasteners.

4. Partially peel back the link weatherstrip No.1.

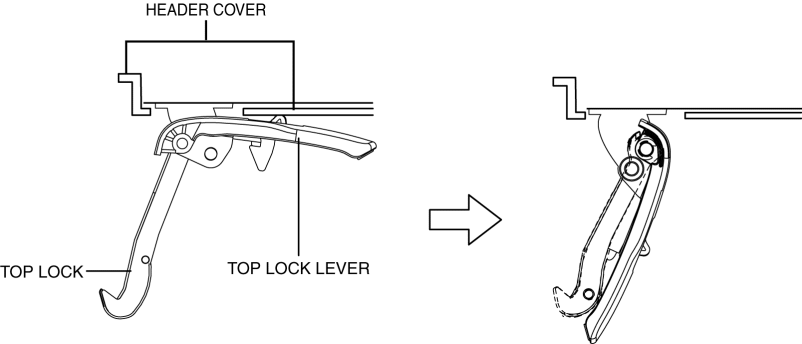

5. Hold the top lock and top lock lever using a hand and keep them in the condition shown in the figure.

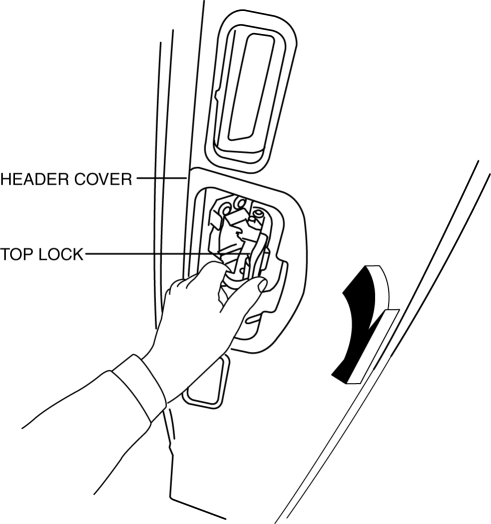

6. Move the header cover in the direction of the arrow shown in the figure and remove it so that it does not contact the top lock.

7. Install in the reverse order of removal.
