FRONT MUDGUARD REMOVAL/INSTALLATION

Front Mudguard No.1

1. Remove the front deflector. (See FRONT DEFLECTOR REMOVAL/INSTALLATION.)

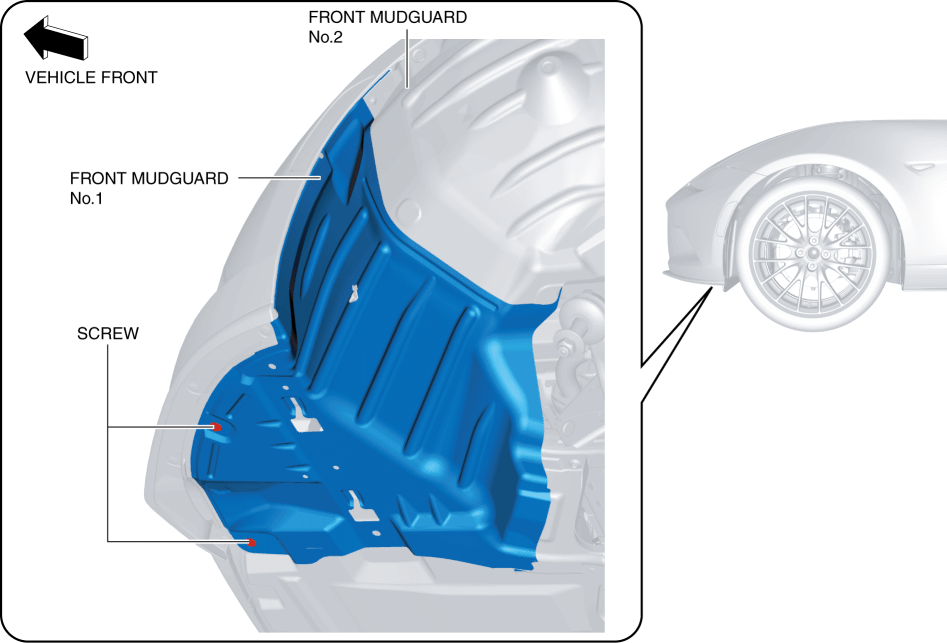

2. Remove the screws.

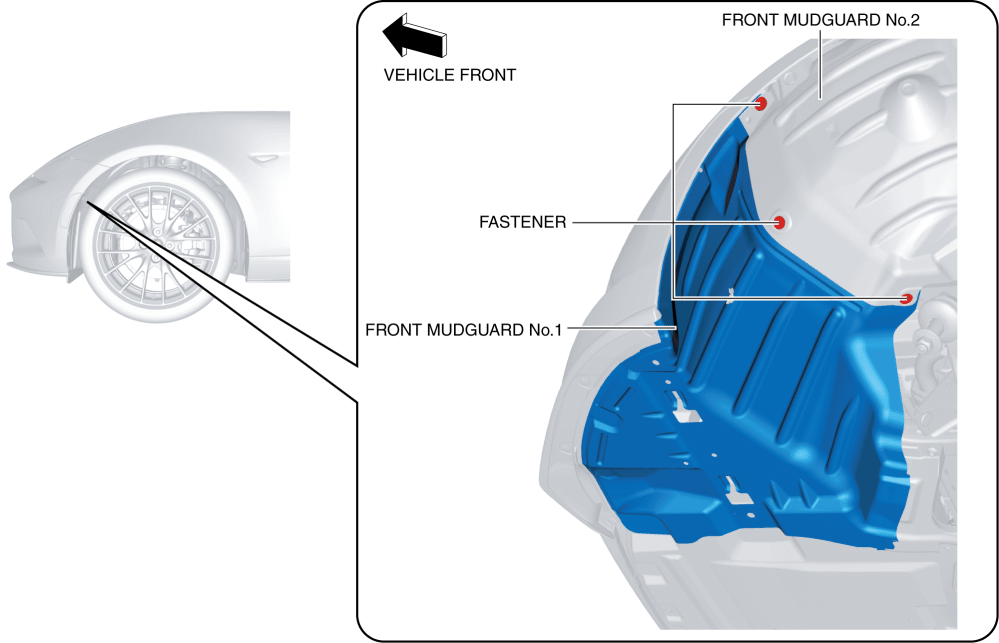

3. Remove the fasteners.

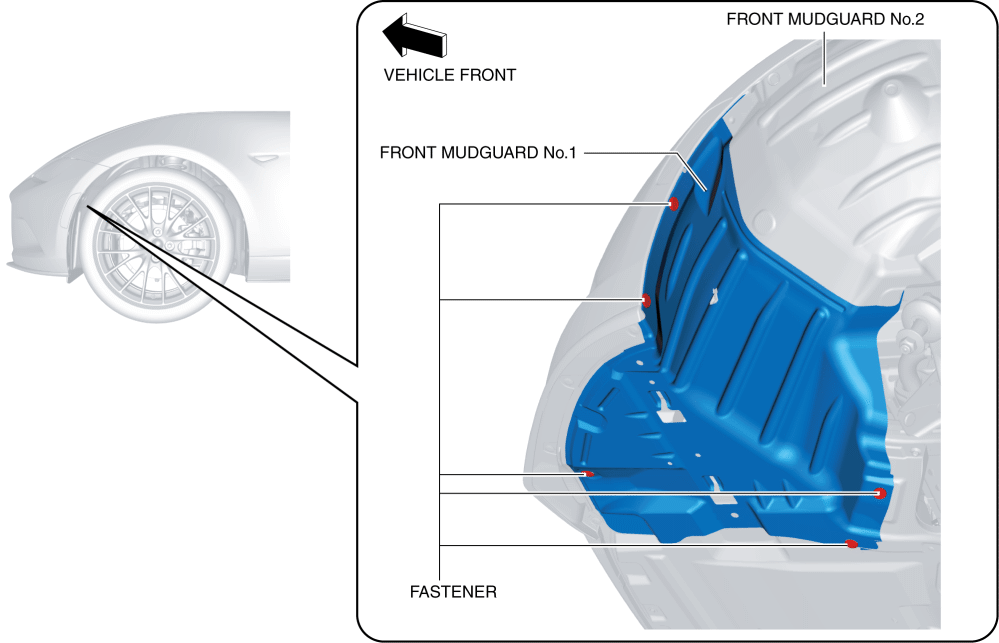

4. Remove the fasteners.

5. Remove front mudguard No.1.
6. Install in the reverse order of removal. (See Front Mudguard No.1 Installation Note.)

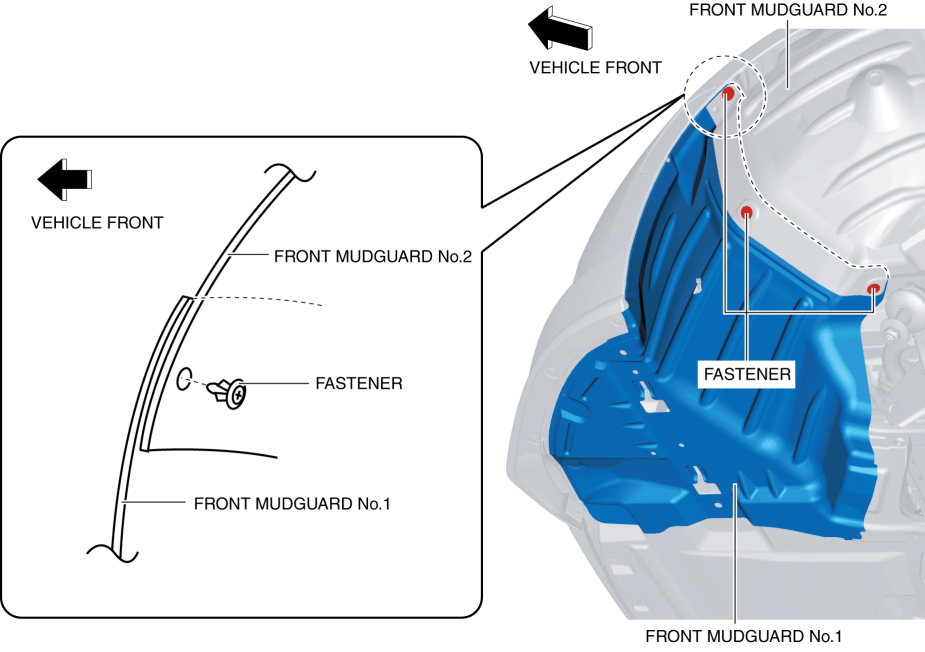

Front Mudguard No.1 Installation Note

CAUTION:

  • If front mudguard No.1 is installed incorrectly, the tire may contact front mudguard No.1 while driving and damage it. In addition, it may cause water penetration and rusting on the body. Install front mudguard No.1 to the position shown in the figure.

Front Mudguard No.2

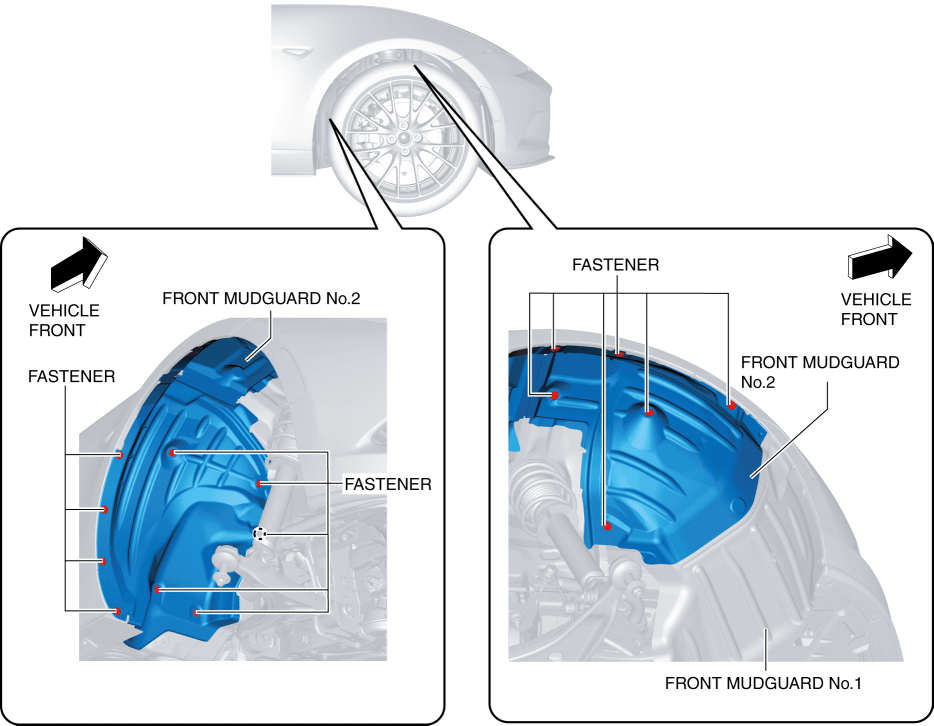

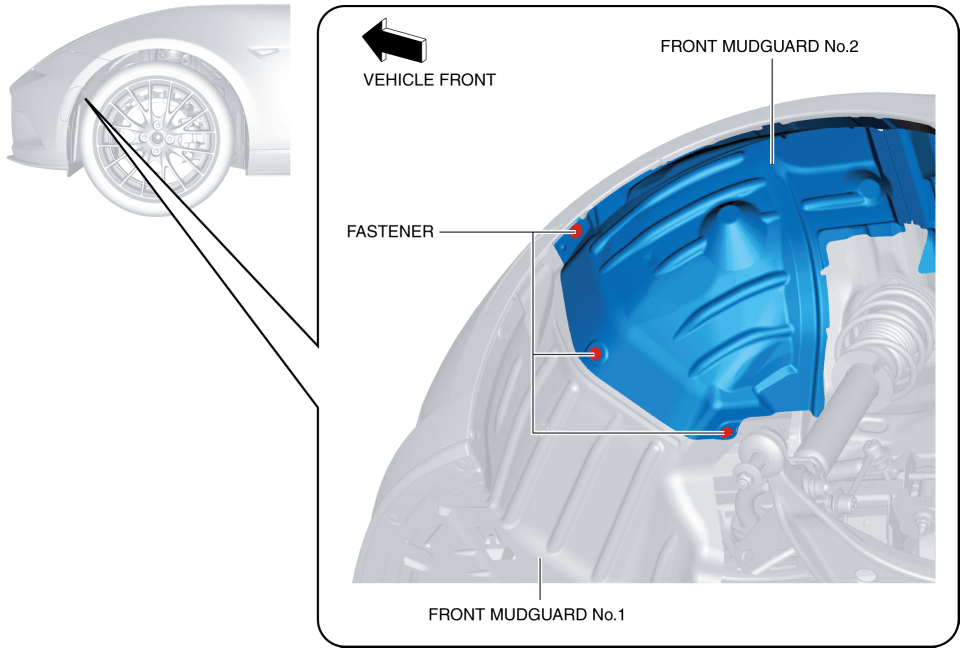

1. Remove the fasteners.

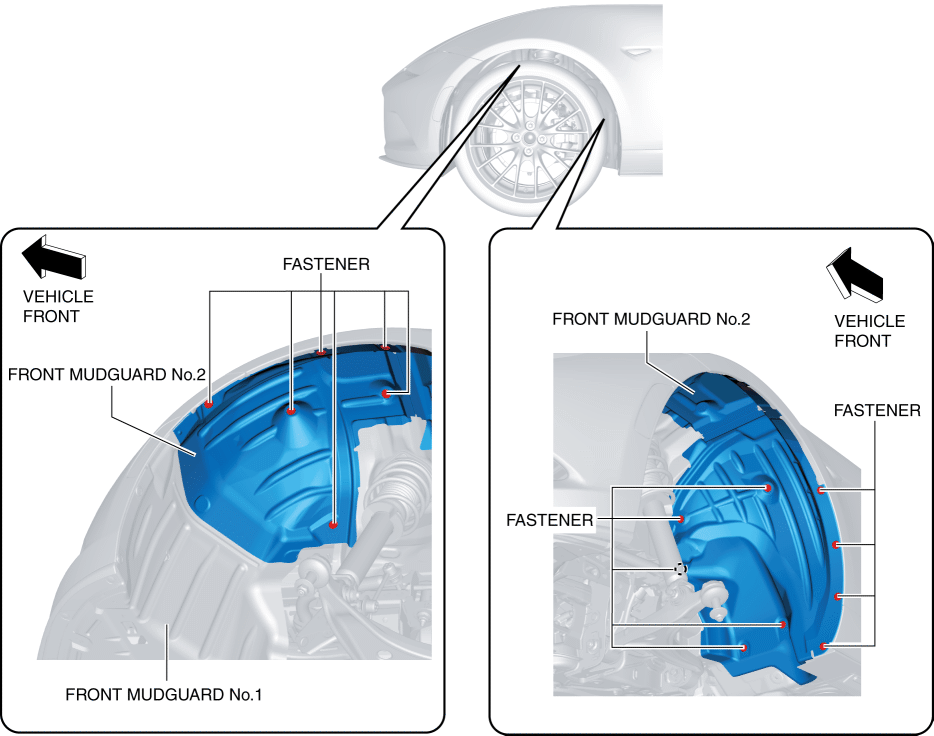

2. Remove the fasteners.

LH

RH

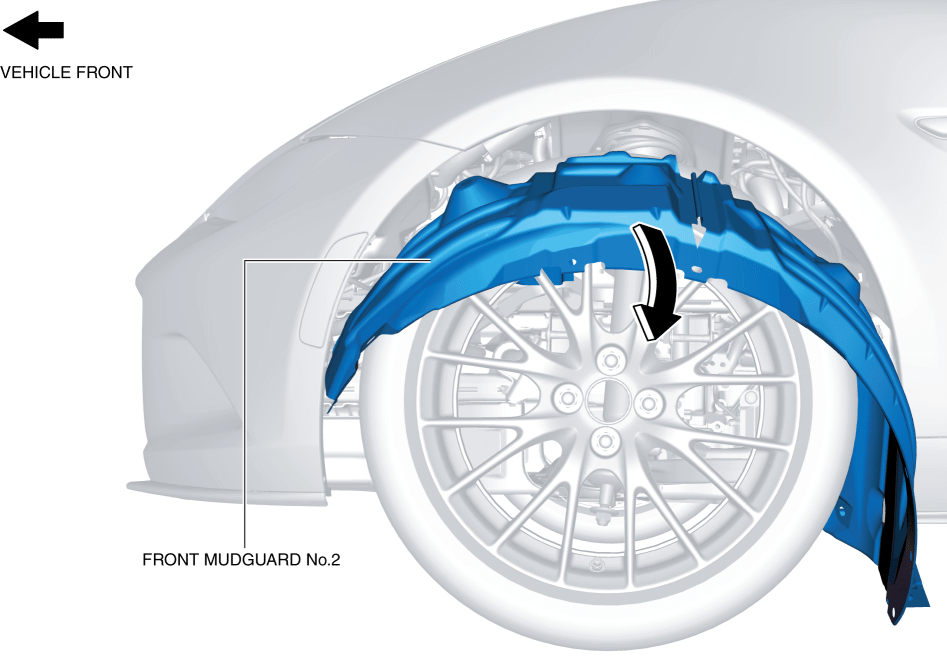

3. Pull out front mudguard No.2 in the direction of the arrow shown in the figure and remove it.

4. Install in the reverse order of removal.
