A-PILLAR TRIM REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

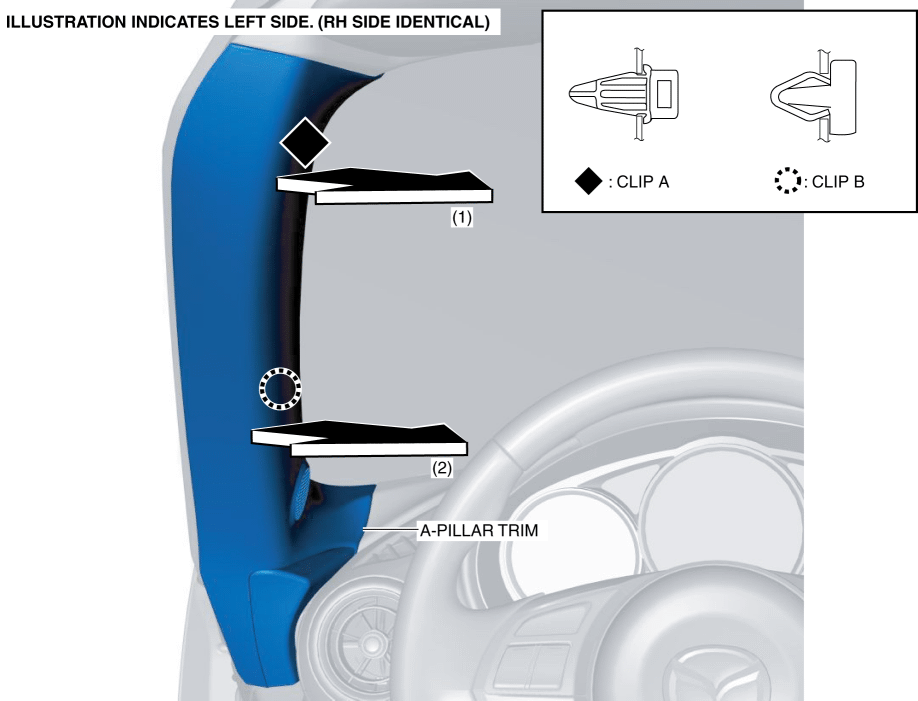

2. Move the A-pillar trim in the order of arrows (1) and (2) shown in the figure, and detach clips A and B from the dashboard.

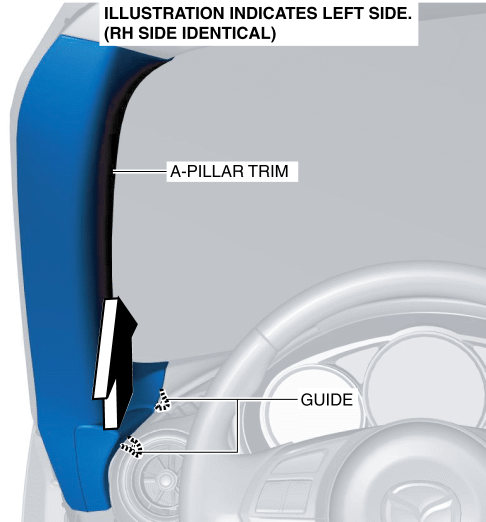

3. Pull the A-pillar trim in the direction of the arrows shown in the figure and remove it while releasing the guides.

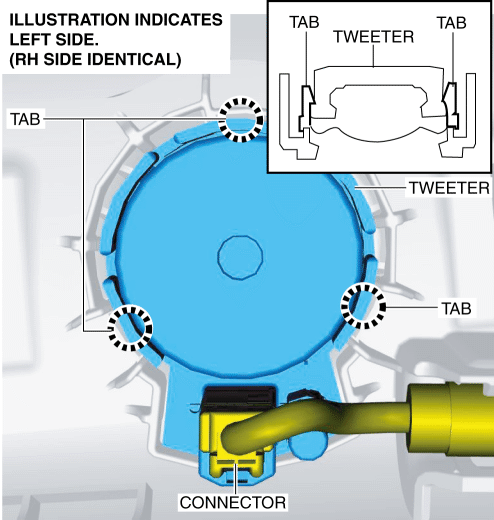

4. Release the tabs in the positions shown in the figure and remove the tweeter from the A-pillar trim.

NOTE:

  • The tweeter connector cannot be disconnected with the tweeter installed to the A-pillar trim.

5. Disconnect the connector.

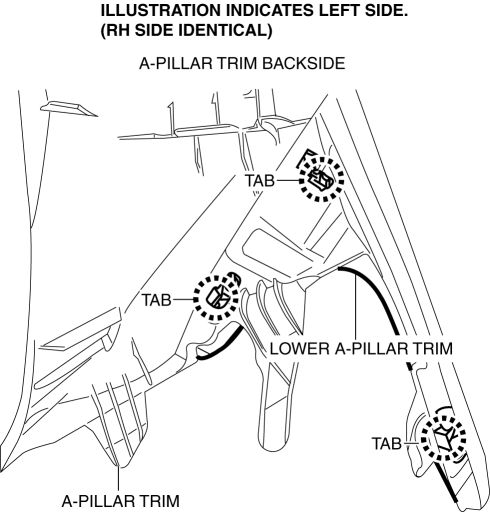

6. To remove the lower A-pillar trim, release the tabs in the positions shown in the figure and remove it from the A-pillar trim.

7. Install in the reverse order of removal.
