LIGHT SWITCH INSPECTION

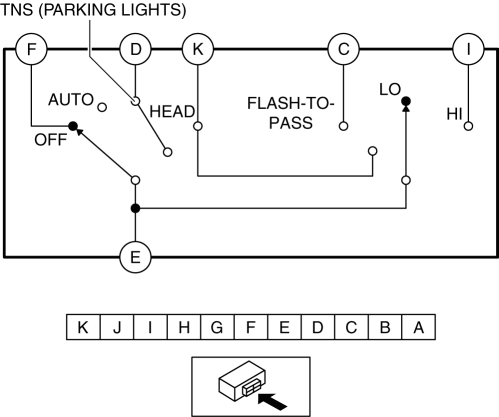

Light Switch

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)
3. Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)
4. Verify that the continuity between the light switch terminals is as indicated in the table.

Without auto light system

With auto light system

Turn Switch

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)
3. Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)
4. Verify that the continuity between the light switch terminals is as indicated in the table.
