CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY

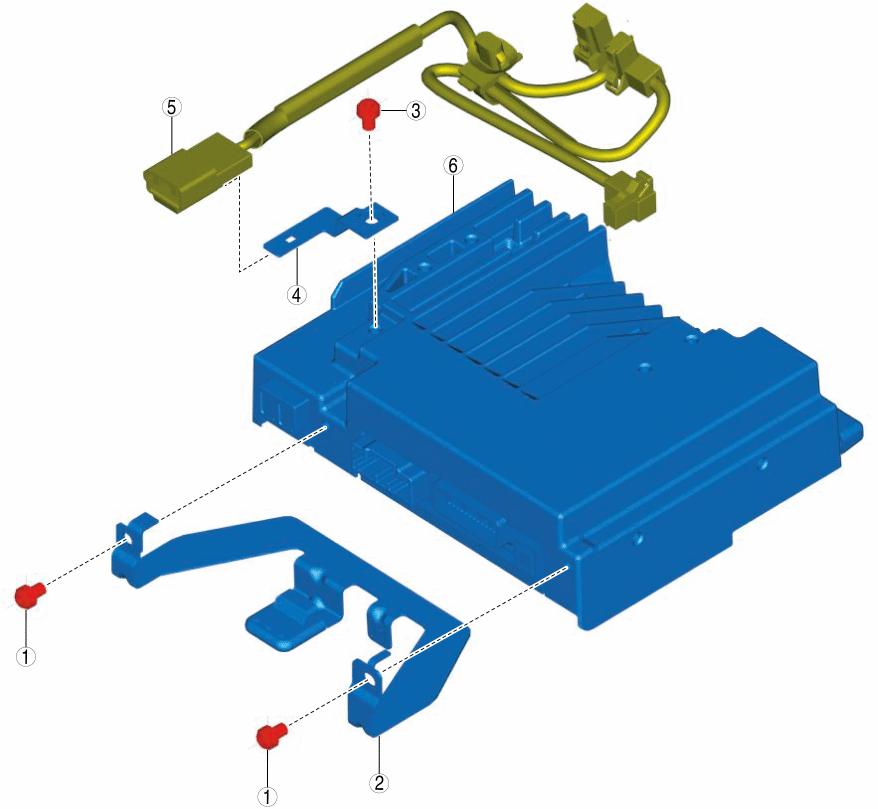

1. Disassemble in the order indicated in the table.

1

Screw A

2

Bracket A

3

Screw B

4

Bracket B

5

Short-cord (See Short-cord Assembly Note.)

6

Connectivity master unit (CMU)
2. Assemble in the reverse order of disassembly.

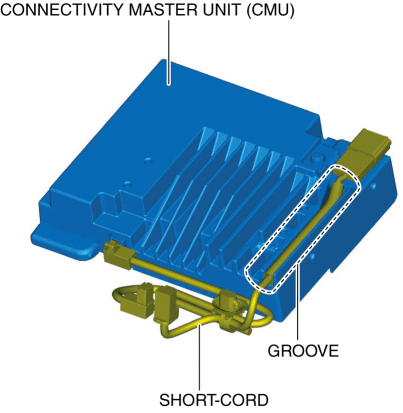

Short-cord Assembly Note

  • When assembling the short-cord, press it into the groove of the CMU.
