SiriusXM SATELLITE RADIO ANTENNA FEEDER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)
3. Remove the trunk side trim. (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

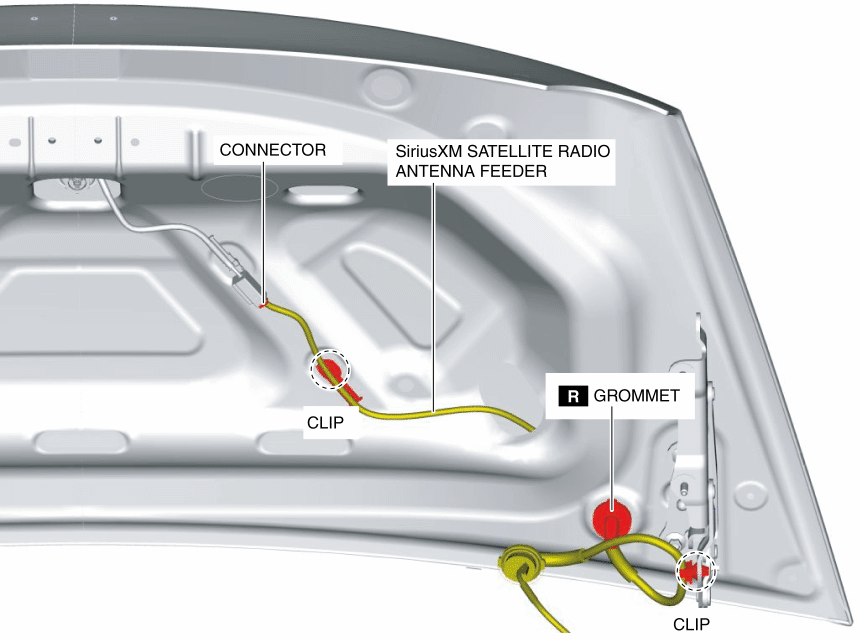

4. Disconnect the connector.

5. Remove clip in the position shown in the figure.
6. Pull out the grommet. (See Grommet Installation Note.)

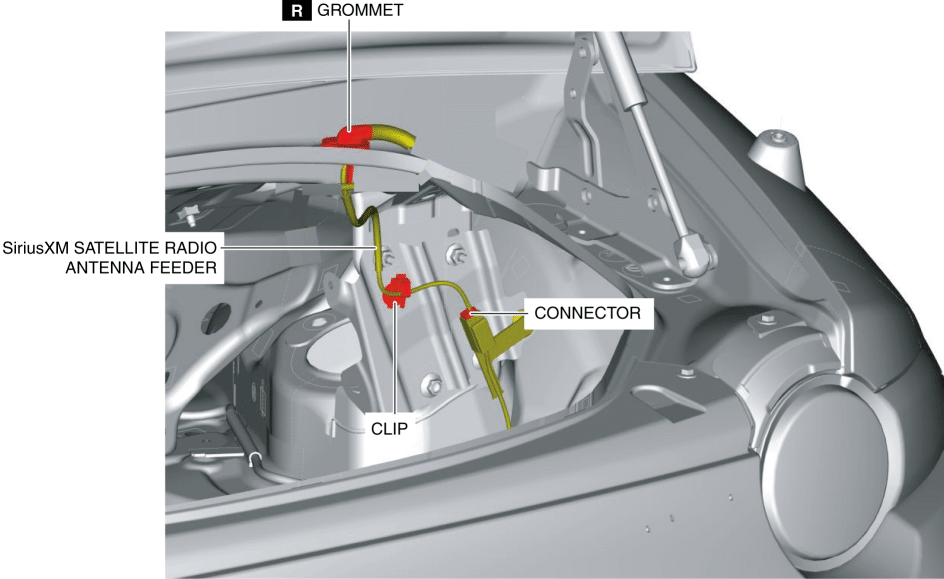

7. Disconnect the connector.

8. Remove clips in the position shown in the figure.
9. Pull out the grommet.
10. Remove SiriusXM satellite radio antenna feeder.
11. Install in the reverse order of removal.

Grommet Installation Note

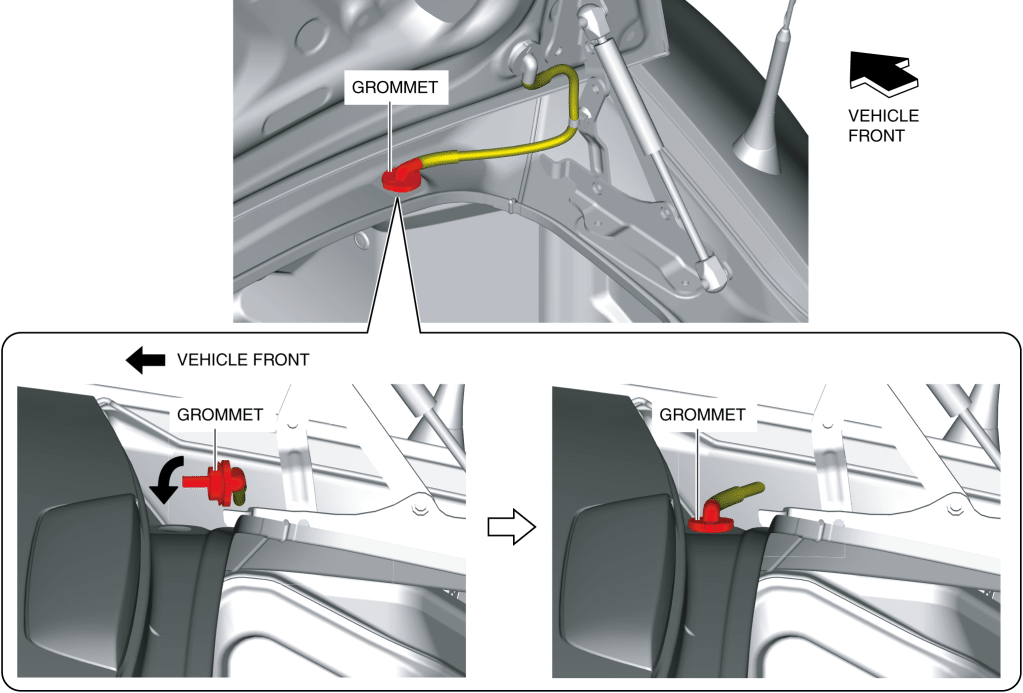

1. Rotate the grommet in the direction of the arrow shown in the figure and install it to the body.

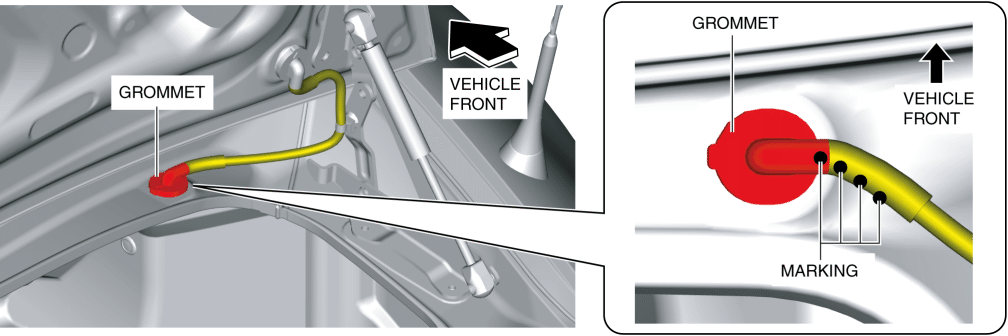

2. Verify that the grommet markings are facing the vehicle rear as shown in the figure.
