PUSH BUTTON START

Purpose

• By pressing the switch ON/OFF, the push button start notifies the start stop unit of the driver power supply switching operation.

Function

Push button start indicator light

• If the push button start indicator light detects the engine switch condition, a malfunction, or the steering lock cannot be released, it indicates this to the driver by turning on/flashing the light.

START/STOP/ENGINE indicator light

• The push button start turns on the characters to improve visibility of the button.

Construction

• The push button start is located on the meter hood.

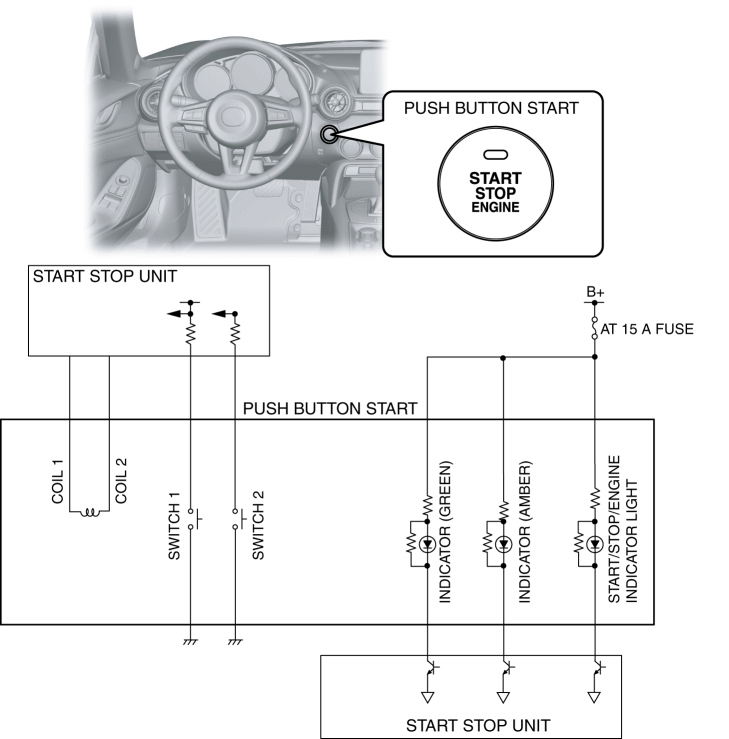

• Two types of switches are integrated in the push button start.

• The push button start has the following integrated indicators. For the illumination/flash condition of the indicator, refer to the [PUSH BUTTON START SYSTEM]. (See PUSH BUTTON START SYSTEM [KEYLESS ENTRY SYSTEM].) (See PUSH BUTTON START SYSTEM [ADVANCED KEYLESS ENTRY SYSTEM].)

• ACC indicator

• ON indicator

• Indicator (green)

• Indicator (amber)

• The push button start is built into the coil antenna. (See COIL ANTENNA.)



Operation

• When the push button start is pressed, switches 1 and 2 turn on (contact point: closed), and when released, it turns off (contact point: open).

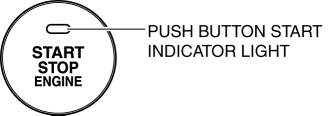

Push button start indicator light

Green illumination

• Illuminates if the conditions necessary for engine-start are met.

Green flashing

• Flashes when the steering lock cannot be released.

Amber illumination

• Turns on when the ignition is switched ON (engine off) or to ACC.

Amber flashing

• Flashes when a malfunction is detected.

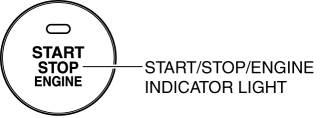

START/STOP/ENGINE indicator light

• When a door is open/closed, the START/STOP/ENGINE indicator light turns on when the headlights are turned on.

Fail-safe

• Not applicable
