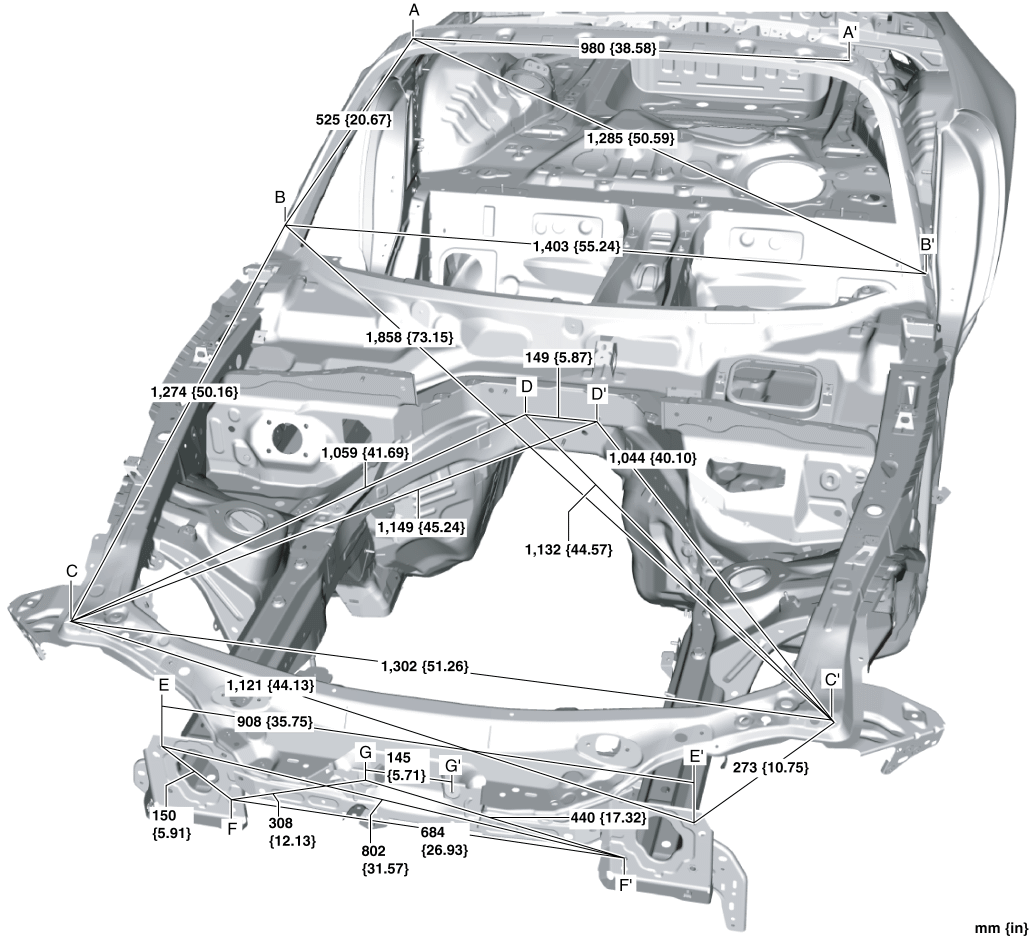

FRONT BODY DIMENSIONS (1) [DIMENSIONS]

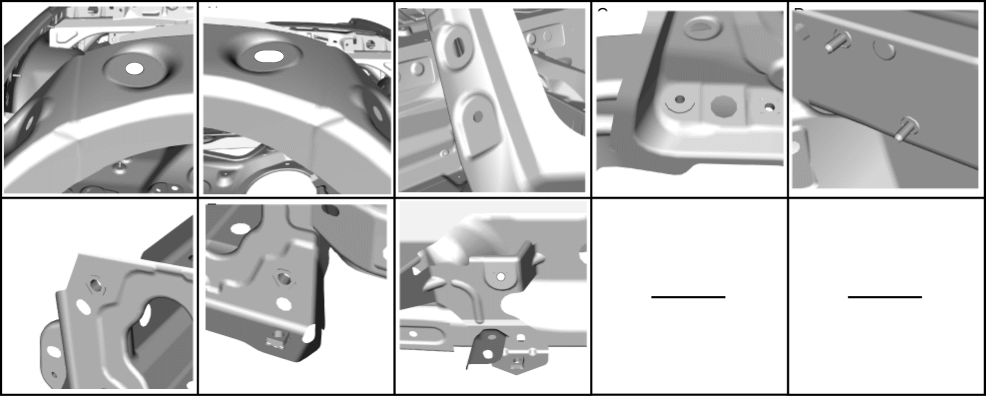

| Point symbol |
Designation |
Hole diameter or bolt or nut size (mm ) |
| A |
Front pillar (outer) datum hole |
RH: φ12 {0.47} LH: 12 × 18 {0.47 × 0.71} |
| B |
A pillar garnish installation hole |
φ10 {0.39} |
| C |
Front fender panel installation nut |
M6 |
| D |
Insulator bracket installation bolt |
M6 |
| E |
Front bumper reinforcement installation nut |
M10 |
| F |
Front bumper reinforcement installation nut |
M10 |
| G |
Hood latch installation nut |
M6 |
