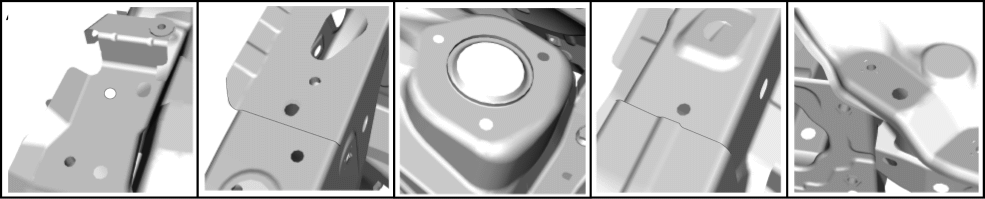

FRONT BODY DIMENSIONS (2) [DIMENSIONS]
| Point symbol |
Designation |
Hole diameter or bolt or nut size (mm ) |
| A |
Hood hinge installation nut |
M8 |
| B |
Cowl upper plate datum hole |
φ10 {0.39} |
| C |
Front suspension mount installation hole |
φ13 {0.51} |
| D |
Apron reinforcement (upper) datum hole |
φ7 {0.3} |
| E |
Front bumper installation hole |
φ10 {0.39} |
