CABIN SIDE FRAME DIMENSIONS [DIMENSIONS]

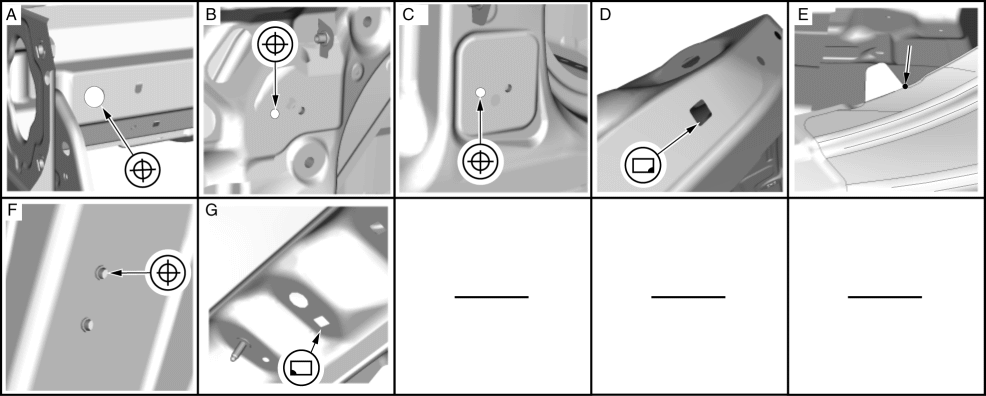

| Point symbol |
Designation |
Hole diameter or bolt or nut size (mm ) |
| A |
Front side frame datum hole |
φ20 {0.79} |
| B |
Door hinge installation nut |
M8 |
| C |
Door hinge installation nut |
M8 |
| D |
Front pillar (outer) datum square hole |
8 × 10 {0.3 × 0.39} |
| E |
Side frame (outer) notch |
— |
| F |
Door striker installation nut |
M8 |
| G |
Rear bumper slider installation square hole |
9 × 11 {0.4 × 0.43} |
