ON-BOARD DIAGNOSTIC OUTLINE [PCM (SKYACTIV-G 2.0)]

Features

  • The PCM performs self-diagnosis to check for malfunctions in the engine control system.

  • If a malfunction occurs in the engine control system, the driver is notified.

  • On-board diagnosis can be performed easily using an external tester.

To meet the OBD-II regulations

  • Diagnostic test modes adopted

Improved serviceability

  • DTCs adopted

  • KOEO/KOER self test function adopted

  • PID/DATA monitor function adopted

  • Active command modes function adopted

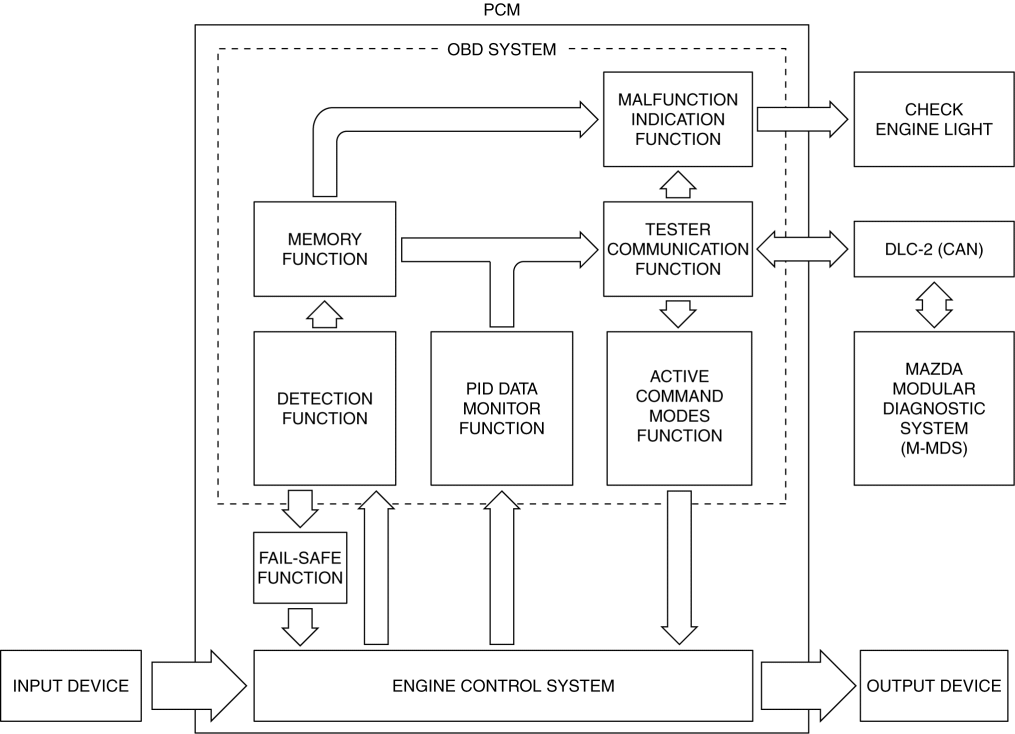

Block Diagram
