PURGE SOLENOID VALVE [SKYACTIV-G 2.0]

Purpose, Function

  • The purge solenoid valve introduces evaporative gas absorbed by the charcoal canister to the intake manifold.

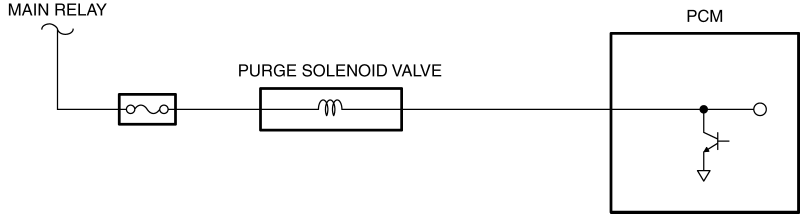

  • The purge solenoid valve opens/closes the valve according to the control signal from the PCM.

Construction

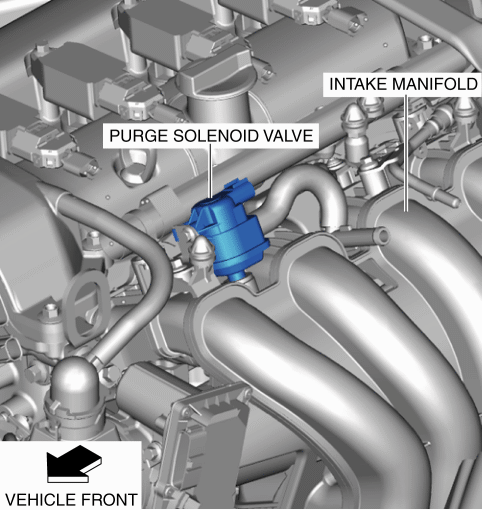

  • The purge solenoid valve is located on the intake manifold.

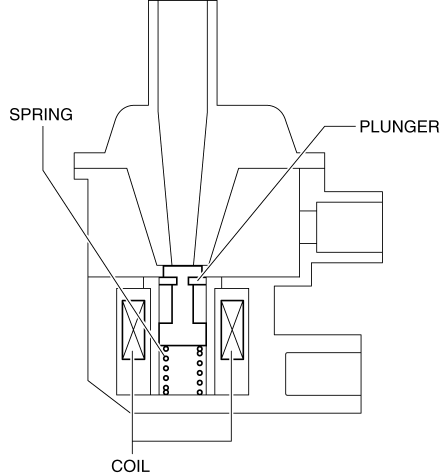

  • The purge solenoid valve consists of a coil, spring, and plunger.

Operation

  • The coil is energized and the plunger is operated to open/close the purge solenoid valve according to the control signal from the PCM.

  • When the purge solenoid valve is open, evaporative gas flows from the charcoal canister to the intake manifold side.

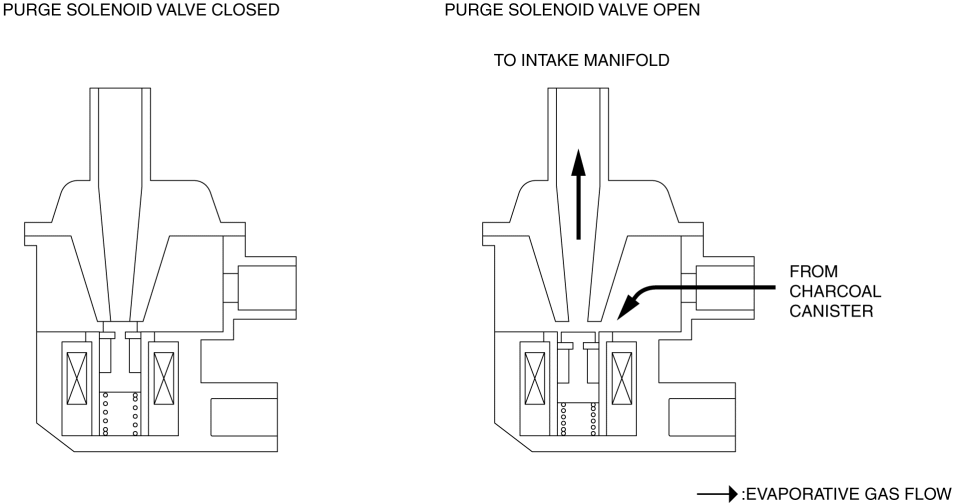

    Purge solenoid valve open/closed view

Fail-safe

  • Not applicable
