EMISSION SYSTEM [SKYACTIV-G 2.0]

Purifies contaminants (CO, HC, NOx) in the exhaust gas, blow-by gas, and evaporative gas exhausted from the vehicle.

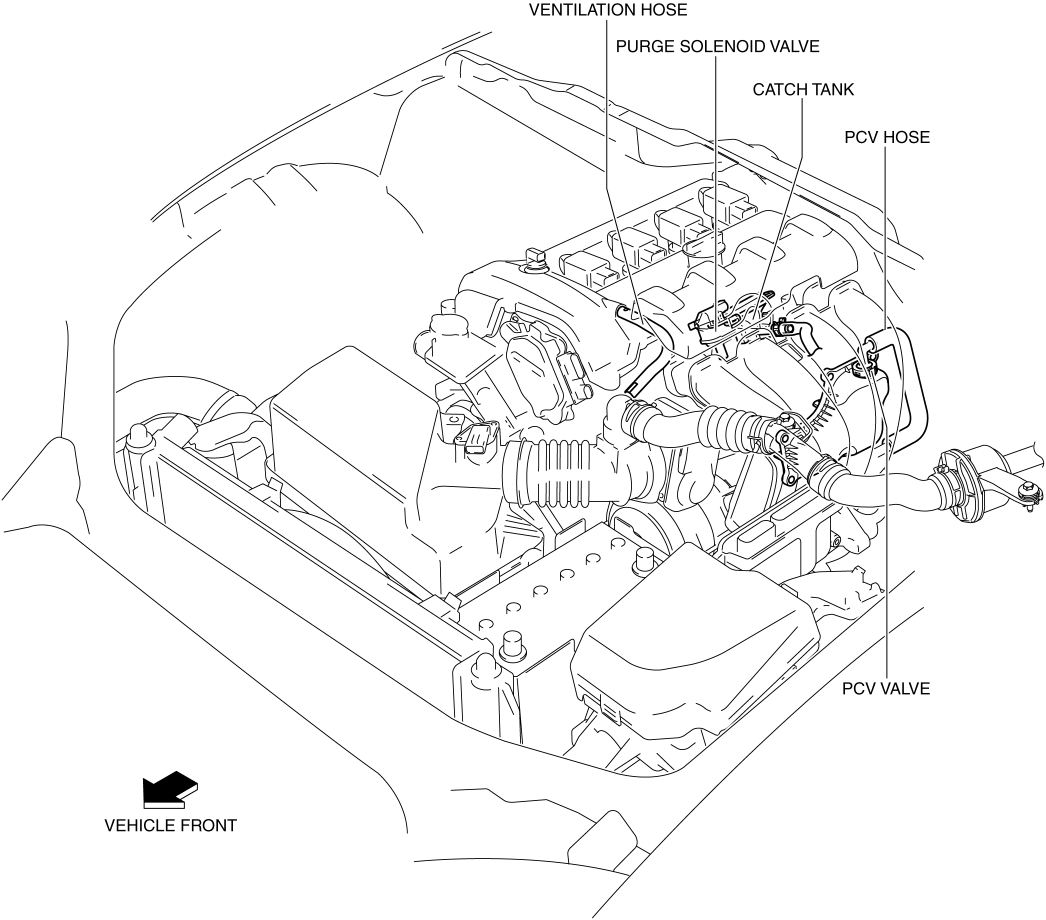

U.S.A. and CANADA specs.

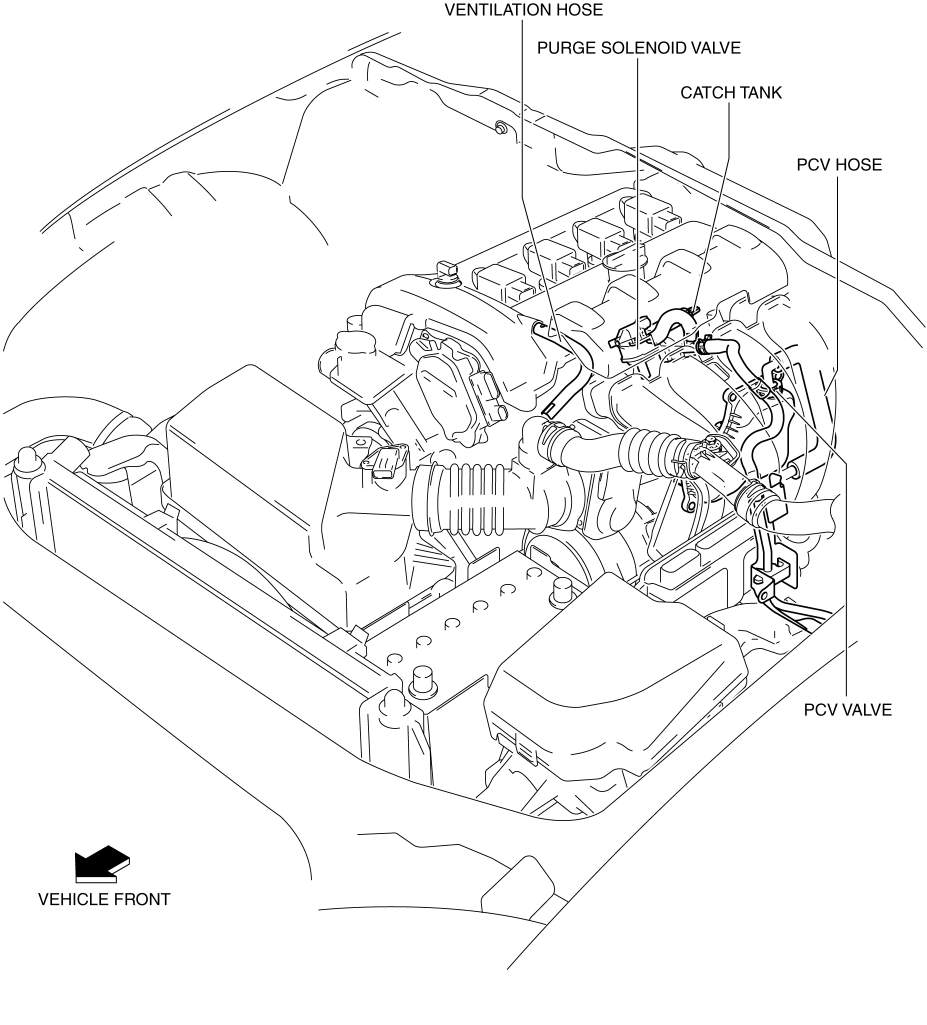

Except U.S.A. and CANADA specs.

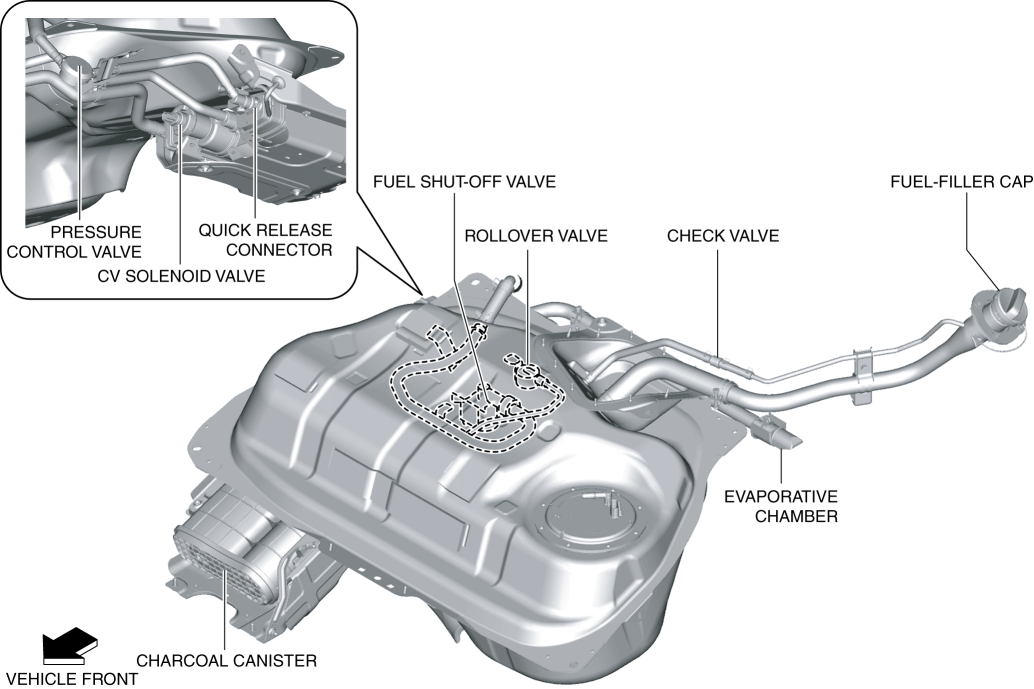

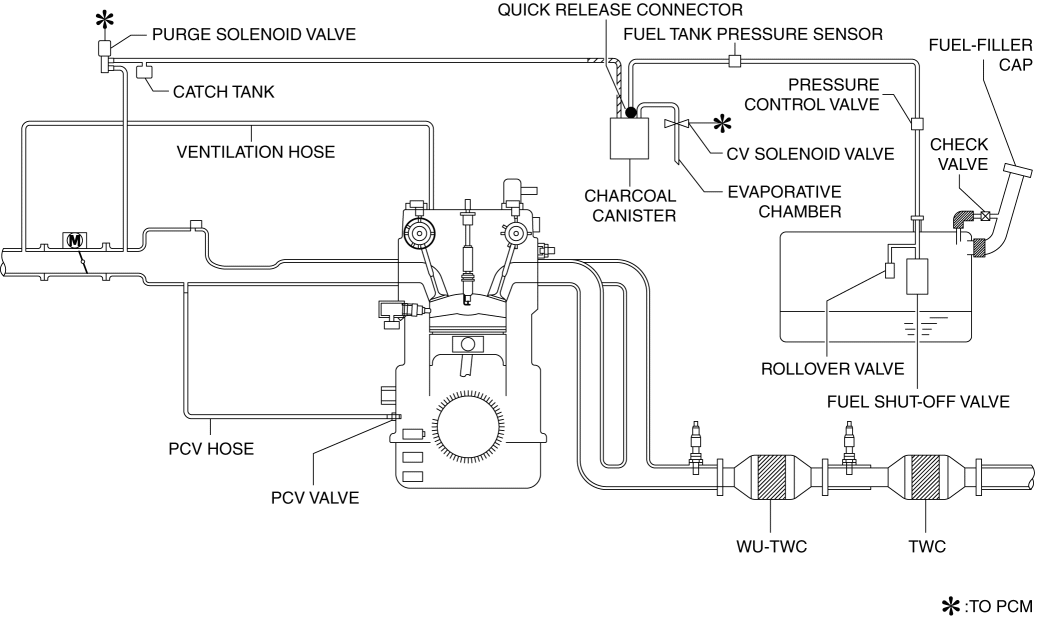

U.S.A. and CANADA specs.

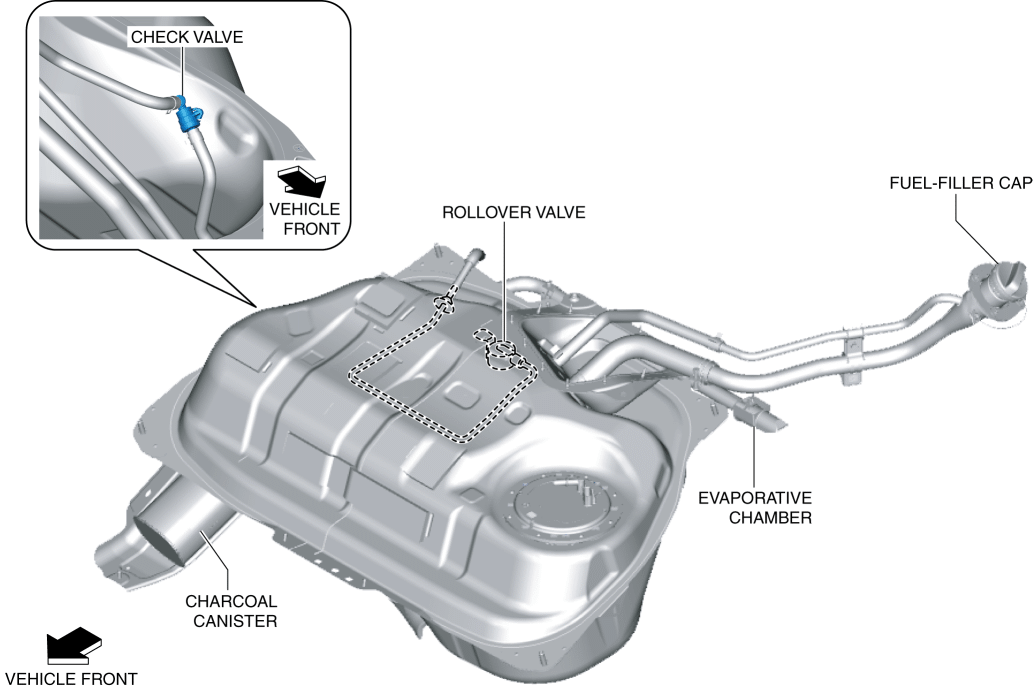

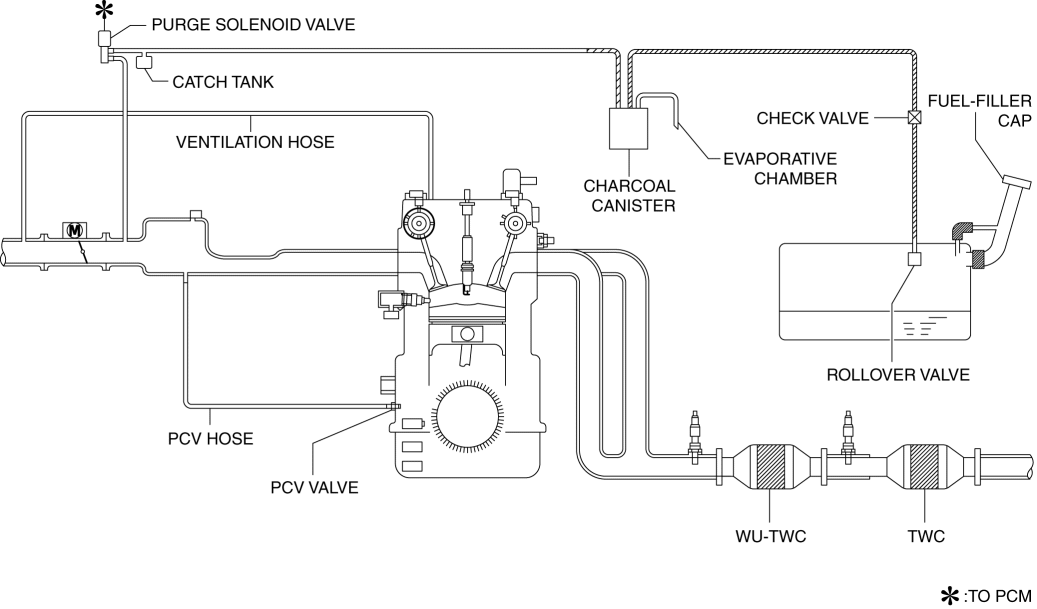

Except U.S.A. and CANADA specs.

The emission system consists of the following parts:

U.S.A. and CANADA specs.

Part/System name		Reference

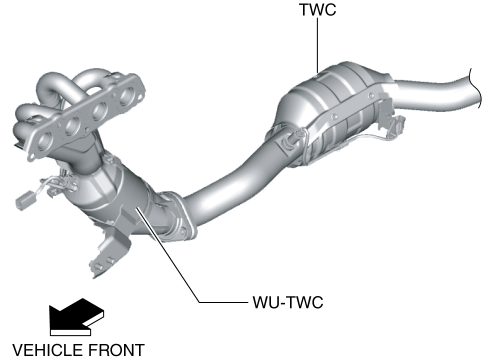

Exhaust gas purification system (See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-G 2.0].)	Catalytic converter	(See CATALYTIC CONVERTER [SKYACTIV-G 2.0].)
Positive crankcase ventilation system (See POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM [SKYACTIV-G 2.0].)	PCV valve	(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE [SKYACTIV-G 2.0].)
Evaporative emission control system (See EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM [SKYACTIV-G 2.0].)	Purge solenoid valve	(See PURGE SOLENOID VALVE [SKYACTIV-G 2.0].)
	Catch tank	(See CATCH TANK [SKYACTIV-G 2.0].)
	Fuel tank pressure sensor	(See FUEL TANK PRESSURE SENSOR [SKYACTIV-G 2.0].)
	Charcoal canister	(See CHARCOAL CANISTER [SKYACTIV-G 2.0].)
	Evaporative chamber	(See EVAPORATIVE CHAMBER [SKYACTIV-G 2.0].)
	Fuel-filler cap	(See FUEL-FILLER CAP [SKYACTIV-G 2.0].)
	Rollover valve	(See ROLLOVER VALVE [SKYACTIV-G 2.0].)
	Check valve	(See CHECK VALVE [SKYACTIV-G 2.0].)
	Fuel shut-off valve	(See FUEL SHUT-OFF VALVE [SKYACTIV-G 2.0].)
	Canister vent (CV) solenoid valve	(See CANISTER VENT (CV) SOLENOID VALVE [SKYACTIV-G 2.0].)
	Pressure control valve	(See PRESSURE CONTROL VALVE [SKYACTIV-G 2.0].)
Quick release connector (emission system)		(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) [SKYACTIV-G 2.0].)

Except U.S.A. and CANADA specs.

Part/System name		Reference
Exhaust gas purification system (See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-G 2.0].)	Catalytic converter	(See CATALYTIC CONVERTER [SKYACTIV-G 2.0].)
Positive crankcase ventilation system (See POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM [SKYACTIV-G 2.0].)	PCV valve	(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE [SKYACTIV-G 2.0].)
Evaporative emission control system (See EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM [SKYACTIV-G 2.0].)	Purge solenoid valve	(See PURGE SOLENOID VALVE [SKYACTIV-G 2.0].)
	Catch tank	(See CATCH TANK [SKYACTIV-G 2.0].)
	Charcoal canister	(See CHARCOAL CANISTER [SKYACTIV-G 2.0].)
	Evaporative chamber	(See EVAPORATIVE CHAMBER [SKYACTIV-G 2.0].)
	Fuel-filler cap	(See FUEL-FILLER CAP [SKYACTIV-G 2.0].)
	Rollover valve	(See ROLLOVER VALVE [SKYACTIV-G 2.0].)
	Check valve	(See CHECK VALVE [SKYACTIV-G 2.0].)
