FUEL SHUT-OFF VALVE [SKYACTIV-G 2.0]

U.S.A. And CANADA

Purpose, function

  • Prevents fuel from flowing to the charcoal canister during tight turns or vehicle rollover.

  • Releases evaporative gas to the charcoal canister.

  • While refueling, the fuel shut-off valve closes to prevent a fuel overflow.

Construction

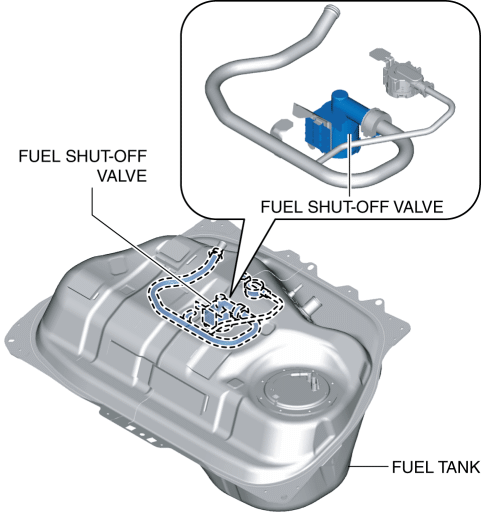

  • The fuel shut-off valve is built into the fuel tank.

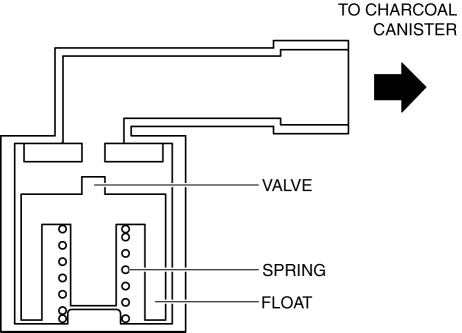

  • The fuel shut-off valve consists of a float, spring, and valve.

Operation

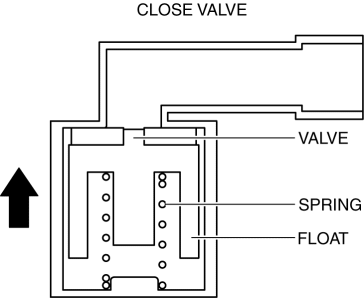

  • When the amount of fuel is high, the valve is closed by the ascending force of the float.

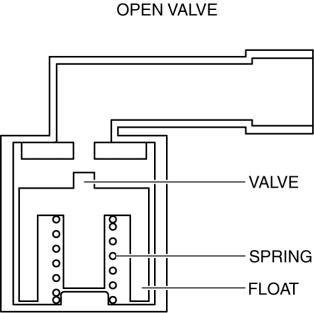

  • When the amount of fuel is low, the valve opens under the float’s own weight to release evaporative gas to the charcoal canister.

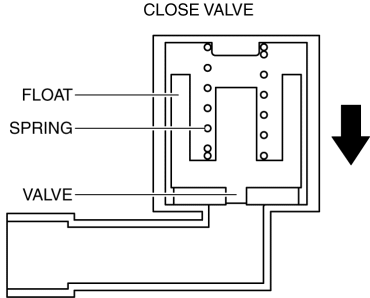

  • During sudden cornering or vehicle rollover, the valve is closed by the ascending force of the float and spring force.
