EVAPORATIVE CHAMBER [SKYACTIV-G 2.0]

Purpose, Function

  • Prevents water and dust penetration when air is taken into the charcoal canister.

Construction

  • The evaporative chamber is installed to the side of the charcoal canister.

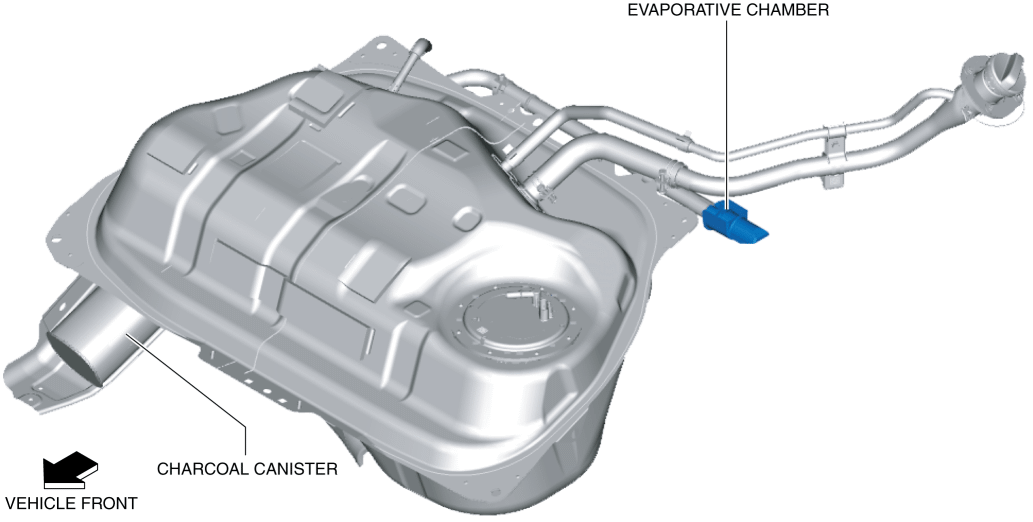

    U.S.A. and CANADA

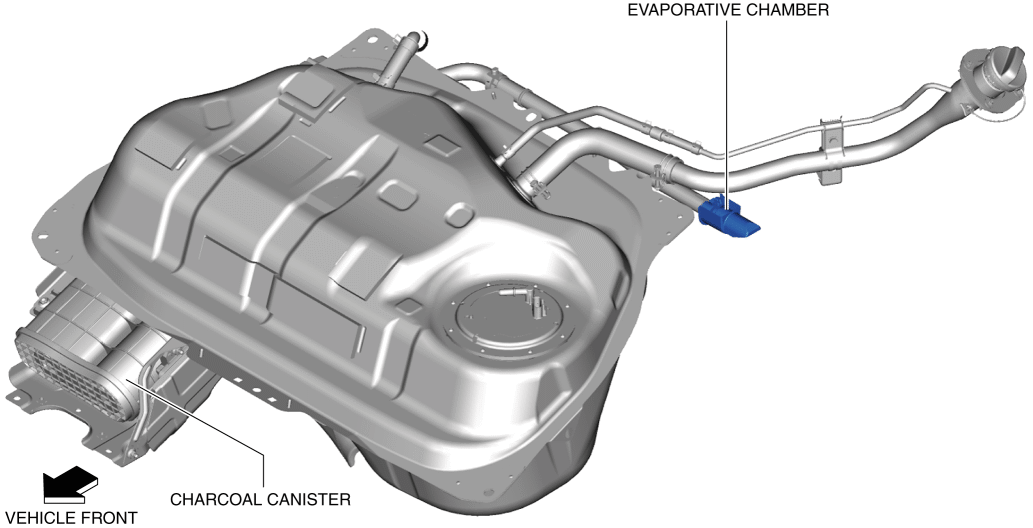

    Except U.S.A. and CANADA

Operation

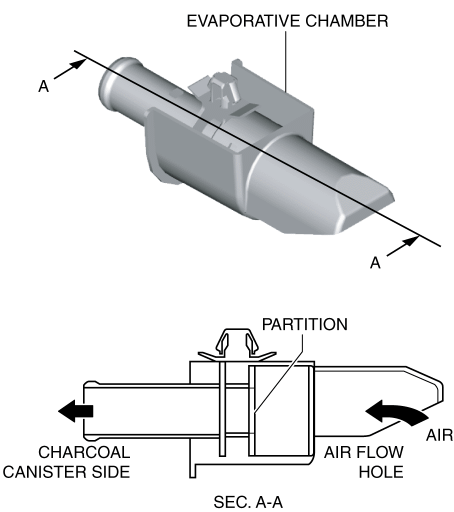

  • Penetration of water and dust from the airflow hole is prevented by setting a partition to protect the charcoal canister.
