IGNITION COIL [SKYACTIV-G 2.0]

Purpose, Function

• The ignition coil generates high voltage required for ignition by electromagnetic induction.

• The direct ignition system stabilizes the spark plug ignition performance by transmitting the high voltage generated in the ignition coil directly to the spark plug, which suppresses the decrease in voltage.

• The ion sensor is built into the ignition coil IC igniter.

  The ion sensor detects pre-ignition. For the ion sensor, refer to the CONTROL SYSTEM. (See ION SENSOR [SKYACTIV-G 2.0].)

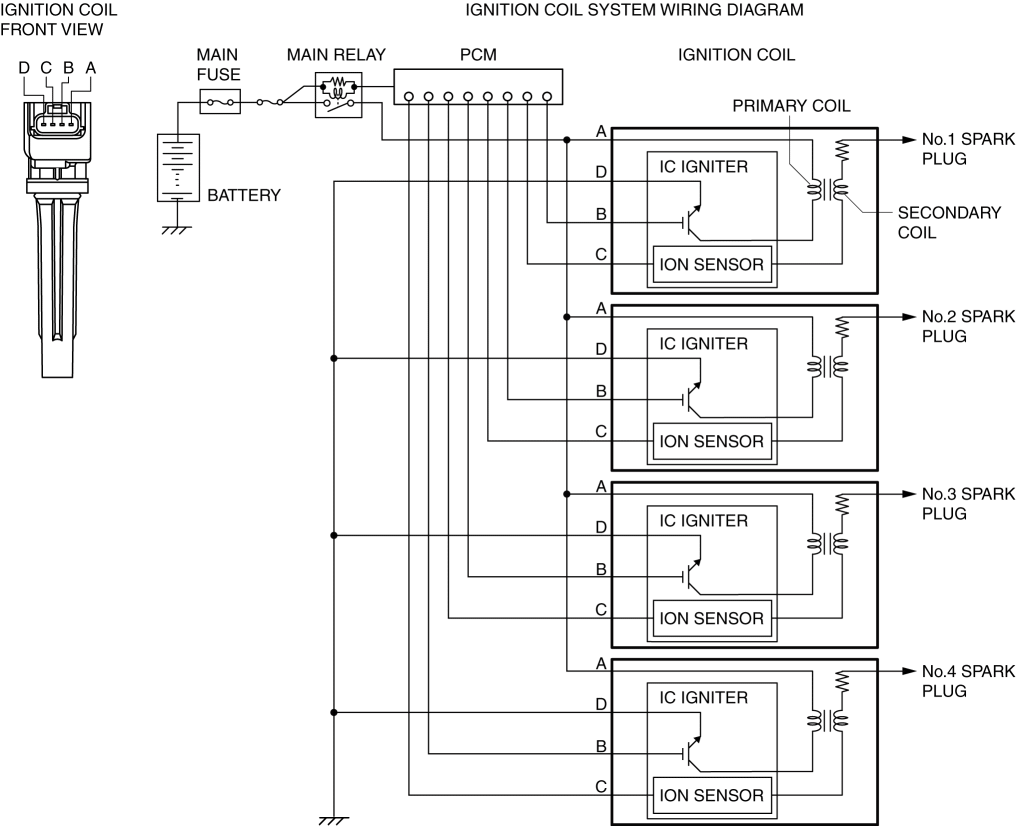

Construction

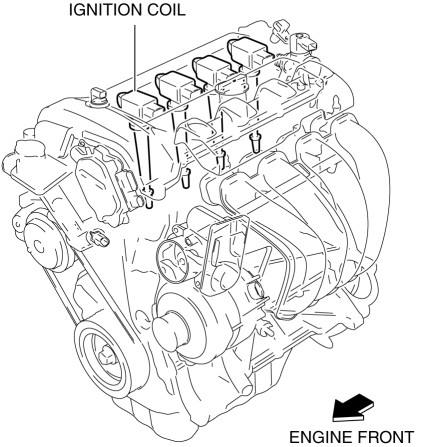

• The ignition coil is located on the upper part of the spark plug.



• By directly connecting the ignition coil to the spark plug, the high voltage transmission path from the ignition coil to the spark plug has been simplified.

• The ignition coil is built into the igniter and ion sensor. For the ion sensor, refer to CONTROL SYSTEM. (See ION SENSOR [SKYACTIV-G 2.0].)

Operation

• Current to the ignition coils is blocked and high voltage is generated at the optimum timing according to the driving conditions by the PCM ignition control.



Fail-safe
