M RANGE SWITCH

Purpose/Function

  • The M position switch detects that the selector lever is in the M position.

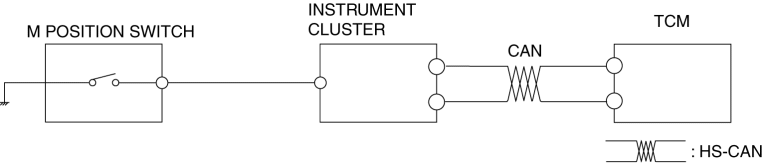

  • The M position switch signal is sent to the TCM via CAN, and is used for manual shift control and engine-transmission integration control.

Construction

  • The M position switch is installed to the selector lever.

  • The M position switch is an on/off type switch.

Operation

  • When the selector lever is in the M position, the M position switch contact point closes.

  • By opening and closing the M position switch contact point, the TCM detects that the selector lever is in the M position.
