SHIFT SOLENOID F AND G

Purpose/Function

  • Shift solenoid F and G adjust the C3 clutch pressure and the B2 brake pressure according to the control signal from the TCM.

Construction

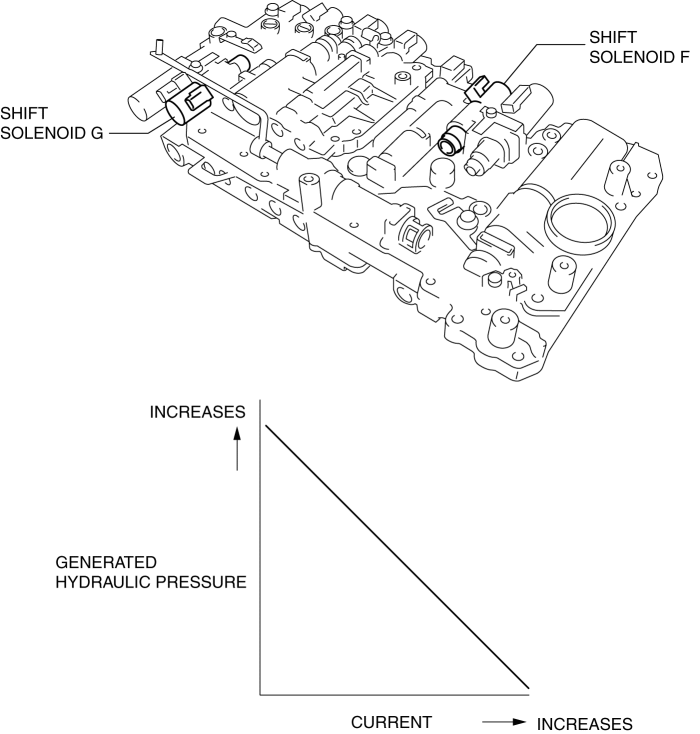

  • Shift solenoid F and G are directly equipped to the control valve body component.

Operation

  • By performing linear adjustment of the C3 clutch pressure and the B2 brake pressure based on the control signals from the TCM, the pressure which is applied to the C3 clutch and the B2 brake is directly controlled during shift changes from 5th to 6th gears.
