A/C UNIT

Purpose, Function

  • The A/C unit opens/closes the air intake door to switch the air intake port to FRESH or REC.

  • The A/C unit moves the air mix damper to change the amount of the airflow passing through the heater core.

Construction

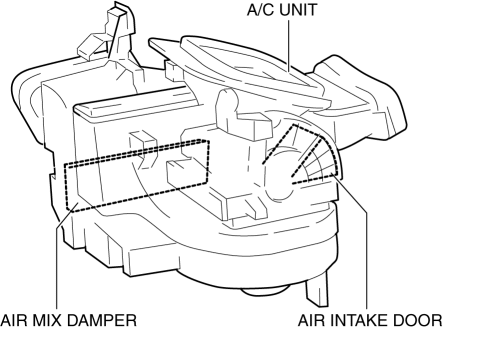

  • The A/C unit consists of the following parts.

Operation

  • For the air intake door operation, refer to the [BLOWER SYSTEM]. (See BLOWER SYSTEM.)

  • For the air mix damper operation, refer to the [VENTILATION SYSTEM]. (See VENTILATION SYSTEM.)

Fail-safe

  • Not applicable
