AIR DIST (DISTRIBUTION) UNIT

Purpose, Function

  • The air dist unit opens/closes the mode door and switches the airflow to the air vents.

Construction

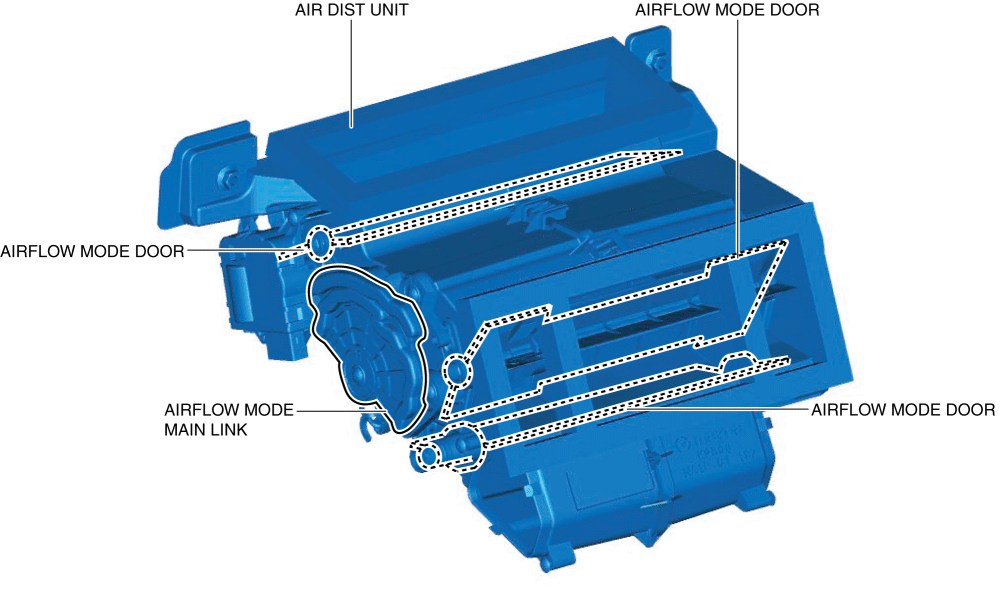

  • The air dist unit consists of the following parts.

Operation

  • For the air dist unit operation, refer to the [VENTILATION SYSTEM]. (See VENTILATION SYSTEM.)

Fail-safe

  • Not applicable
