EVAPORATOR TEMPERATURE SENSOR [FULL-AUTO AIR CONDITIONER]

Purpose, Function

  • The evaporator temperature sensor detects airflow passing through it and converts the airflow temperature to an electrical signal.

Construction

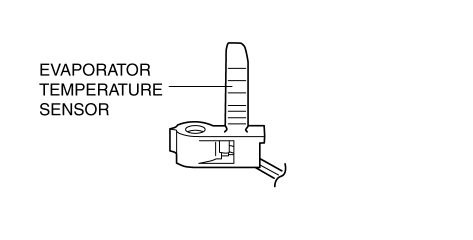

  • A thermistor-type evaporator temperature sensor has been adopted.

  • A fin-thermo-type sensor has been adopted to the sensor area of the evaporator temperature sensor which inserts between the evaporator fins.

  • The evaporator temperature sensor is located on the A/C unit.

Operation

  • The thermistor changes the resistance according to the surrounding temperature.

  • The resistance decreases if the temperature increases, and increases if the temperature decreases.

Fail-safe

  • Not applicable
