AIR MIX ACTUATOR [FULL-AUTO AIR CONDITIONER]

Purpose

  • The air mix actuator moves the air mix damper in the A/C unit to adjust the temperature of the air blown from the air vent.

Functions

Damper up/down movement function

  • The damper up/down movement function moves the air mix damper up/down (HOT or COLD direction) by driving the air mix actuator motor.

Damper position detection function

  • The damper position detection function fluctuates the potentiometer voltage which is linked to the air mix actuator motor drive.

Construction

  • A potentiometer-type air mix actuator has been adopted.

  • The air mix actuator is located on the A/C unit.

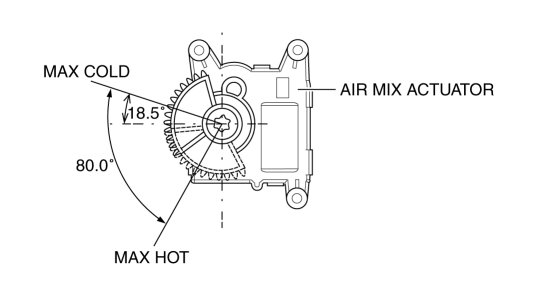

  • The operation range of the air mix actuator is as shown in the figure.

Operation

Fail-safe

  • Not applicable
