AIR INTAKE ACTUATOR [FULL-AUTO AIR CONDITIONER]

Purpose

  • The air intake actuator opens/closes the air intake door in the A/C unit to switch the air inlet.

Functions

  • The air intake actuator opens/closes the air intake door to the FRESH or RECIRCULATE position by driving the motor.

Construction

  • A mechanical lock-type air intake actuator has been adopted.

  • The air intake actuator is located on the A/C unit.

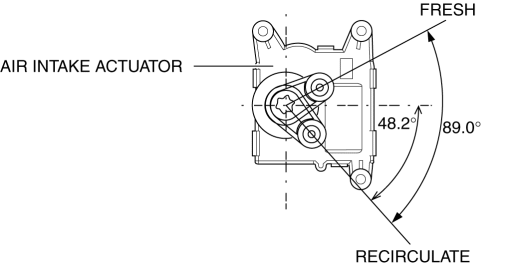

  • The operation range of the air intake actuator is as shown in the figure.

Operation

Fail-safe

  • Not applicable
