SIDE IMPACT BAR

Purpose, Function

  • The side-impact bars prevent the doors from deforming inwards during a side-impact collision.

Construction

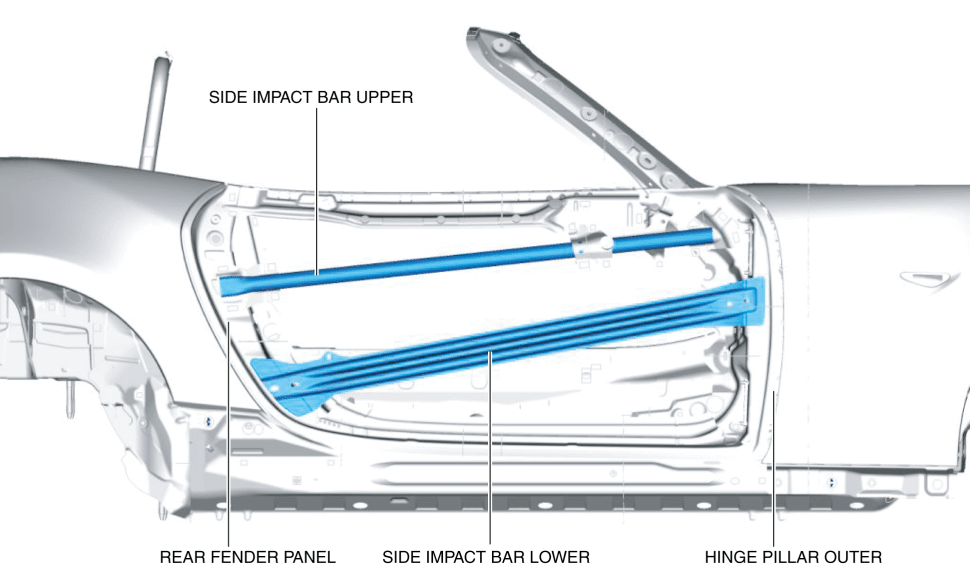

  • Waveform (double-hat shape cross section) shape has been adopted to the side impact bar lower.

  • By adopting the waveform (double-hat shape cross section) to the side impact bar lower, strength can be assured even with thinner steel plates, achieving both high rigidity and weight reduction.

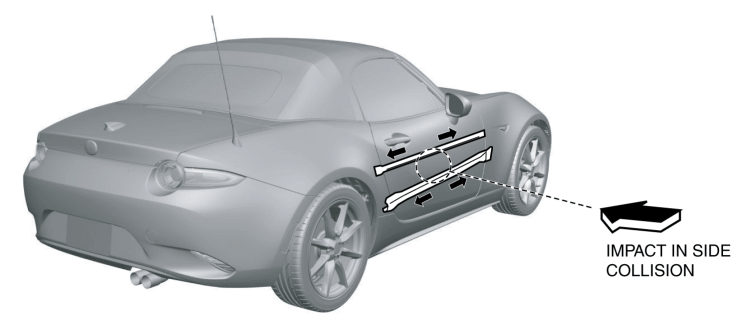

  • The side impact bar lower/side impact bar upper disperse the impact during a side collision.

  • Intrusion of a door during a side collision is suppressed by positioning the side impact bar lower and side impact bar upper so that they overlap the hinge pillar outer and rear fender panel.

Fail-safe

  • Not applicable
