POWER WINDOW SUBSWITCH

Purpose

  • Transmits the power window subswitch operation of the passenger to the power window control module.

Function

Manual

  • When the power window subswitch is operated for manual open/close operation, it sends a manual open/close signal to the power window control module.

Auto

  • When the power window subswitch is operated for auto open/close operation, it sends an auto open/close signal to the power window control module.

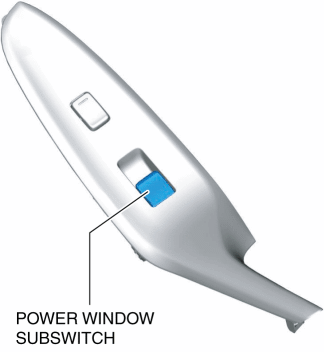

Construction

  • The power window subswitch is located on the passenger's side.

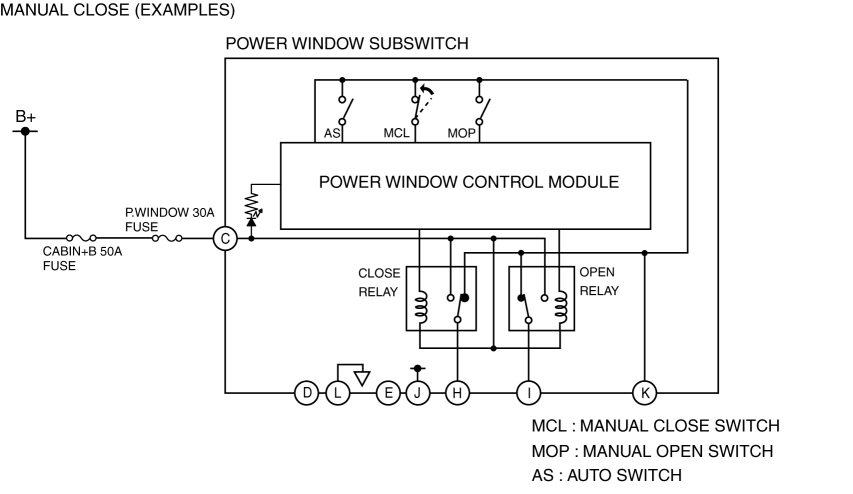

Operation

  • Contact points for door glass opening/closing are changed by operating the power window subswitch.

Fail-safe

  • Not applicable
