POWER WINDOW MAIN SWITCH

Purpose

  • Transmits the power window main switch operation of the driver to the power window control module.

Function

Manual

  • When the power window main switch is operated for manual open/close operation, it sends a manual open/close signal to the power window control module.

Auto

  • When the power window main switch is operated for auto open/close operation, it sends an auto open/close signal to the power window control module.

Power cut

  • When the power-cut switch is on (contact point: Open), operation of the power window subswitches for the passenger seats is disabled.

Construction

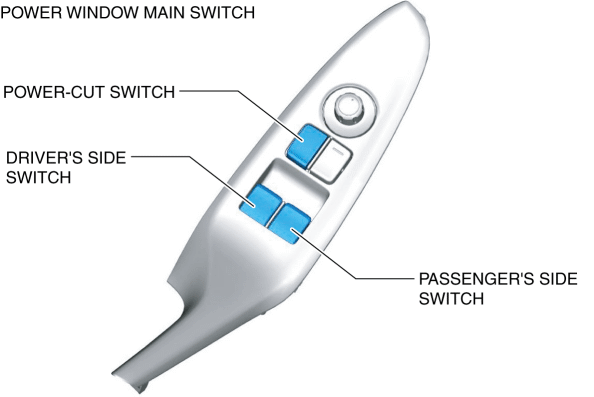

  • The power window main switch consists of the following component parts.

    • Driver's side switch

    • Passenger's side switch

    • Power-cut switch

Operation

Power window main switch operation

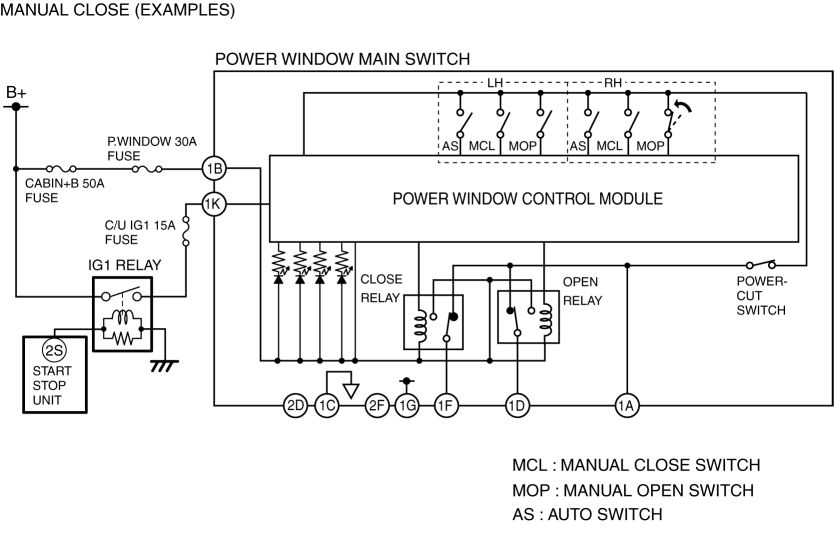

  • Contact points for door glass opening/closing are changed by operating the power window main switch.

Power-cut switch operation

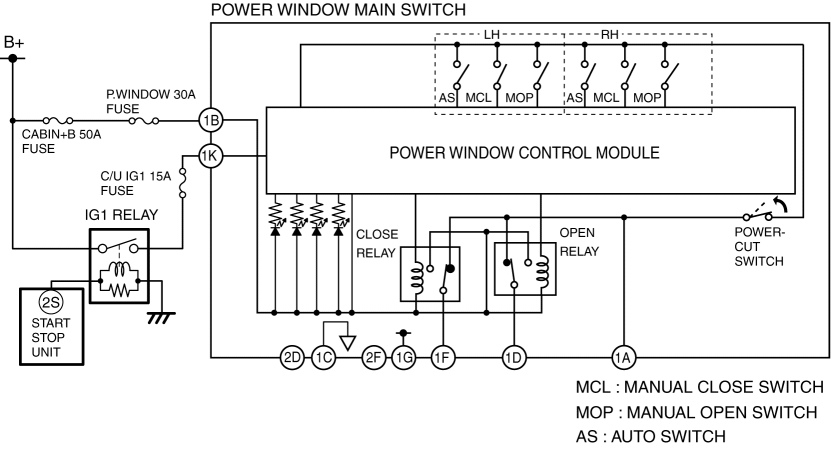

  • When the power-cut switch of the power window main switch is on (contact point: Open), current from each power window subswitch is interrupted.

Fail-safe

  • Not applicable
