POWER WINDOW MOTOR

Purpose

  • The power window motor transmits rotation force to the power window regulator.

  • The power window motor outputs pulse to the power window control module to input motor operation status.

Function

  • The power window motor rotates clockwise/counterclockwise when it receives an open/close signal from the power window main switch or the power window subswitch.

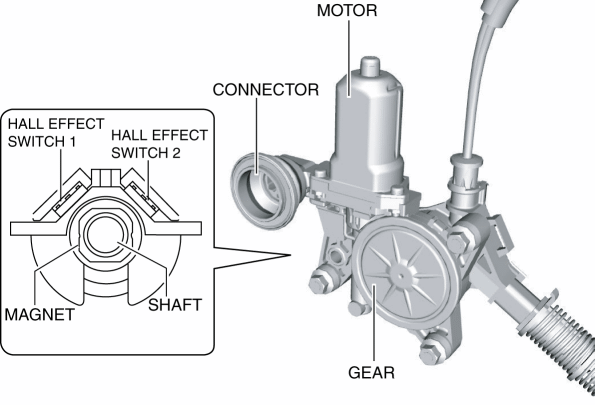

Construction

  • The power window motor consists of the following component parts.

    • Motor

    • Connector

    • Gear

  • The power window motor has two Hall effect switches.

    • The Hall effect switches output pulse to the power window control module.

Operation

Open operation

  • When the power window motor receives an open signal from the power window main switch or power window subswitch, the motor rotates counterclockwise.

Close operation

  • When the power window motor receives a close signal from the power window main switch or power window subswitch, the motor rotates clockwise.

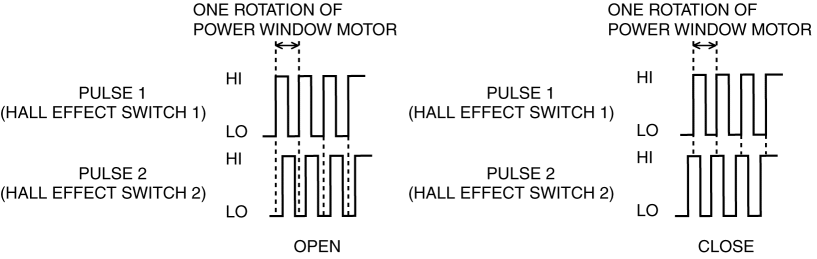

Hall effect switch operation

  • The Hall effect switch utilizes magnets set on a rotating axis to detect the motor rotation, and outputs one pulse cycle for each rotation of the motor rotation axis.

  • The high and low pulse points of Hall effect switches 1 and 2 are different during opening and closing because the phase difference shifts by approx. 90°.

Fail-safe

  • When the power window motor is operated continuously for a certain period of time, the power window motor operation is stopped temporarily to protect the power window motor inner circuit.
