LIGHTING SYSTEMS
Outline
—: Not applicable
Front combination lights have been adopted with parts related to the front exterior lights grouped and housed together.
The following systems have been adopted to the headlights.
Auto light system (With auto light system)
Headlight auto leveling system
Daytime running light (DRL) system
Coming home light system
Leaving home light system
Auto light-off system
LEDs have been adopted for the following lights:
Headlight
Parking light
Daytime running light (DRL) (Daytime running light (DRL) (LED type))
Brake light/Taillight
High-mount brake light
A room light control system has been adopted in which illumination time and illumination level of the interior lights change.
| Item |
Bulb specification (UNECE (SAE)) |
Spec (W) x quantity |
||
| Exterior |
Headlight LO |
LED*1 |
24 |
|
| Headlight HI |
LED*1 |
24 |
||
| Parking light |
LED*1 |
3.3 |
||
| Front turn light |
— (7444NA) |
28 / 8 × 2 |
||
| Front side marker light |
W5W (—) |
5 × 2 |
||
| Daytime running light (DRL) (bulb type) |
W21W (7440) |
21 × 2 |
||
| Daytime running light (DRL) (LED type) |
LED*1 |
6 |
||
| Side turn light*2 |
WY5W (—) |
5 × 2 |
||
| Rear turn light |
WY21W (7443NA) |
21 × 2 |
||
| Brake light/Taillight |
LED*1 |
4.1 / 0.95 |
||
| Rear side marker light |
W5W (—) |
5 × 2 |
||
| Back-up light |
W21W (7440) |
21 × 2 |
||
| High-mount brake light |
LED*1 |
1.82 |
||
| License plate light |
W5W (—) |
5 × 2 |
||
| Interior |
Map light |
— (—) |
10 × 1 |
|
| Trunk compartment light |
— (—) |
5 × 1 |
||
- *1
- The LED for each light cannot be replaced separately. If there is any malfunction in the LED, replace each light as a single unit.
- *2
- The side turn light bulb cannot be replaced as a single unit because it is integrated with the side turn light. If there is any malfunction in the side turn light bulb, replace the side turn light as a single unit.
Structural View

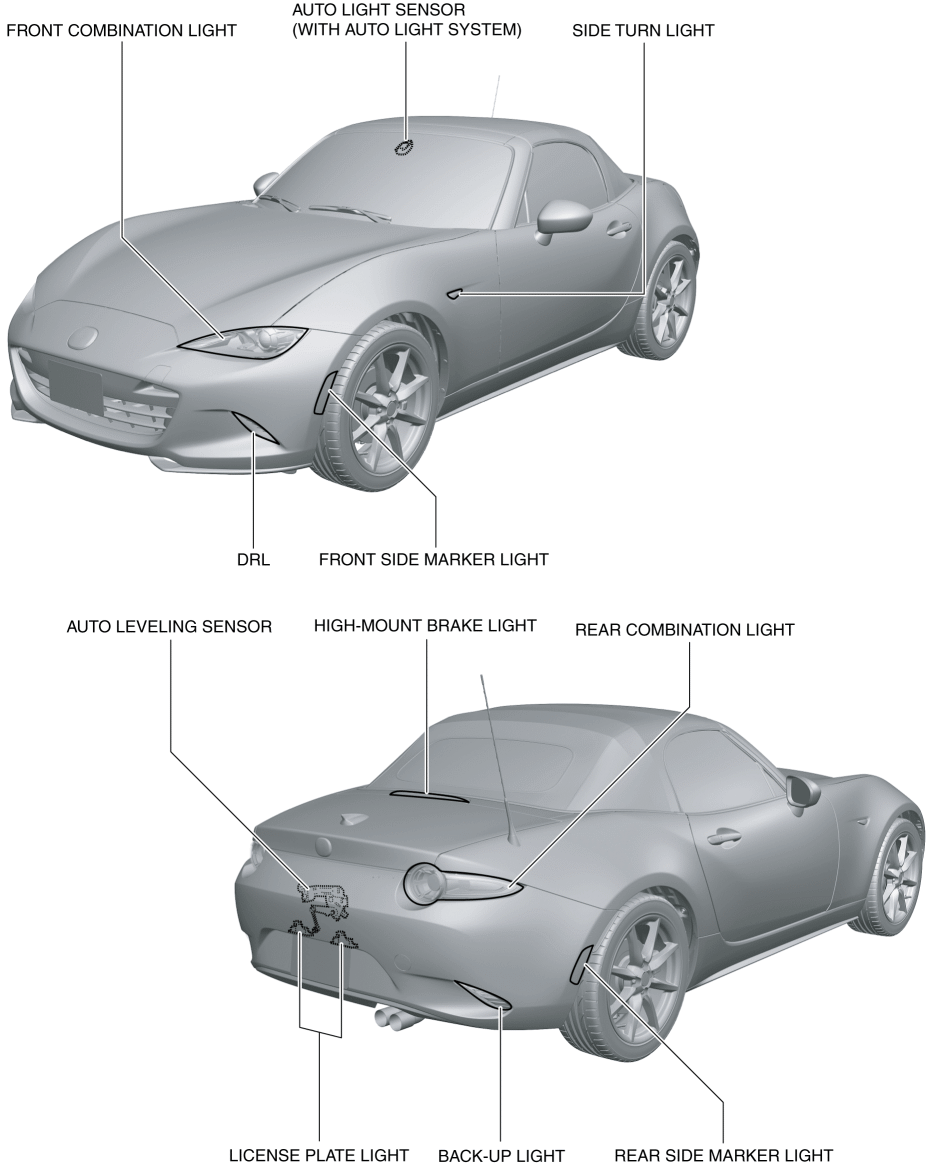

Exterior

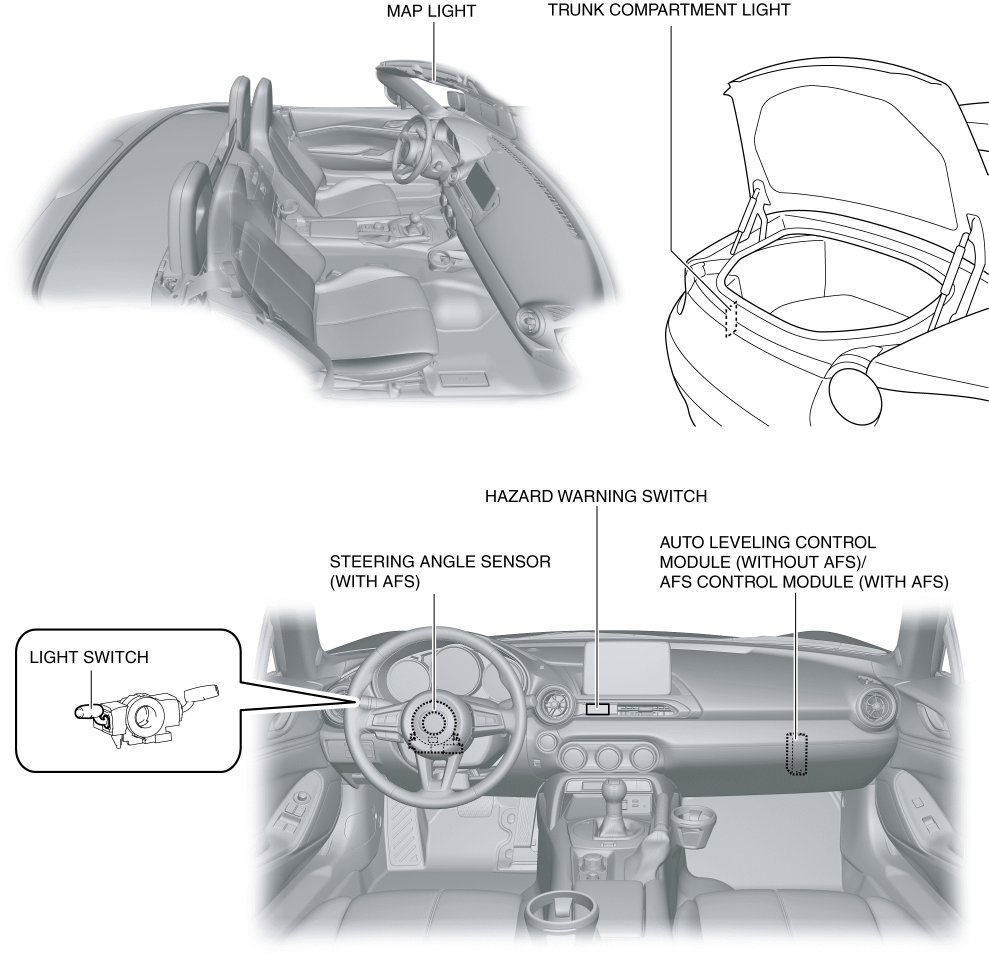

Interior
