FUSE BLOCK

Purpose

  • Fuses used by each system are grouped and housed together to the fuse block for smooth inspection and replacement servicing.

Function

  • The fuse block groups and houses together the fuses.

Construction

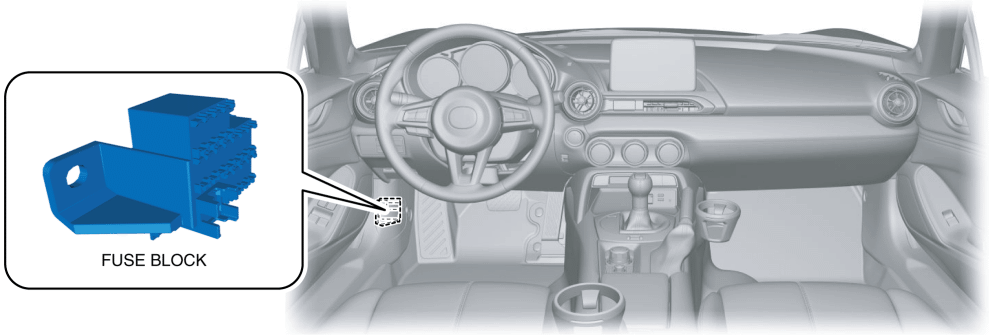

  • The fuse block is located inside the front side trim (LH).

Operation

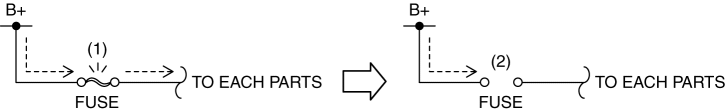

1. If electric current of the specified value or more flows to a fuse, the fuse generates heat and blows (1).

NOTE:

  • The time until a fuse blows depends on the amount of electrical current.

2. If a fuse is blown, electric current flowing to each part downstream of the fuse is interrupted (2).

Fail-safe

  • Not applicable
