INSTRUMENT CLUSTER OPERATION RECORD

Purpose

  • The instrument cluster stores the record of the warning/indicator lights which turned on or flashed as the operation record.

Functions

  • The operation record is stored by the instrument cluster and displayed using the Mazda Modular Diagnostic System (M-MDS).

  • The instrument cluster stores the following information when any of the warning/indicator lights turns on or flashes.

    • Time and date

    • Control module which sent warning light on/flash request

    • Battery voltage

Construction

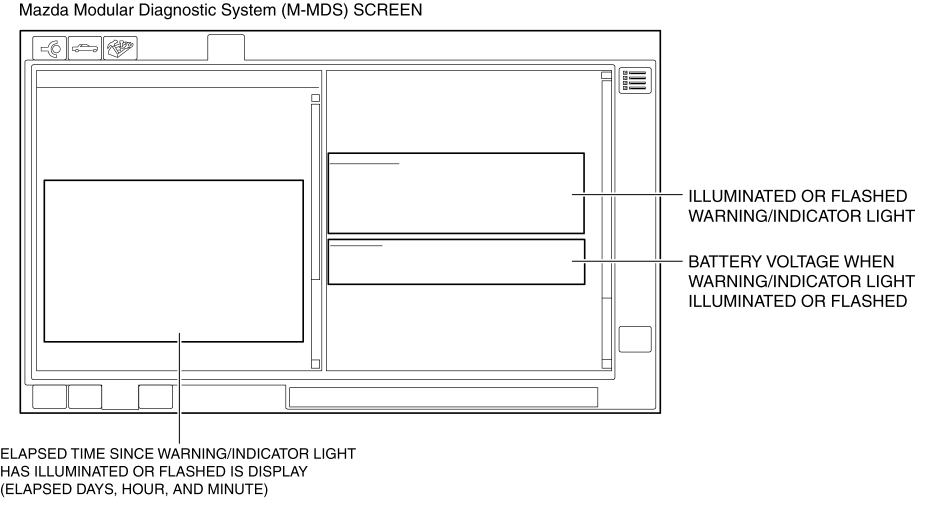

  • Based on the stored information, the instrument cluster displays the following operation record on the Mazda Modular Diagnostic System (M-MDS) screen.

Operation

  • When the instrument cluster receives a CAN signal or a warning/indicator light on or flash request signal sent from each part, it controls the warning light to turn on or flash and stores the operation record at the same time.

Fail-safe

  • Not applicable
