DSC LOCATION INDEX

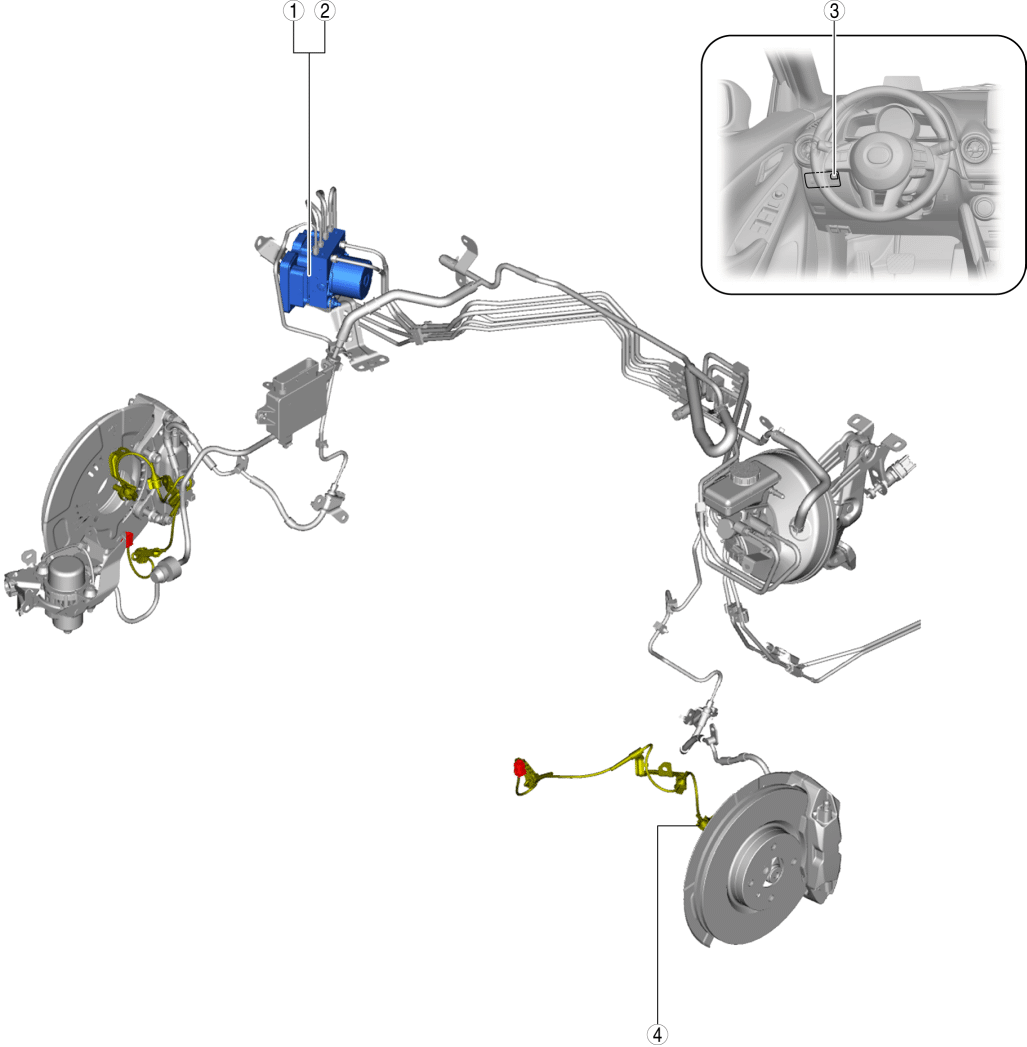

Vehicle Front Side

1

DSC HU/CM

(See DSC HU/CM REMOVAL/INSTALLATION.)

(See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)

(See DSC HU/CM INSPECTION.)

2

Brake fluid pressure sensor (built-into DSC HU/CM)

(See BRAKE FLUID PRESSURE SENSOR INSPECTION.)

(See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)

3

DSC OFF switch

(See DSC OFF SWITCH REMOVAL/INSTALLATION.)

(See DSC OFF SWITCH INSPECTION.)

4

Front ABS wheel-speed sensor

(See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.)

(See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)

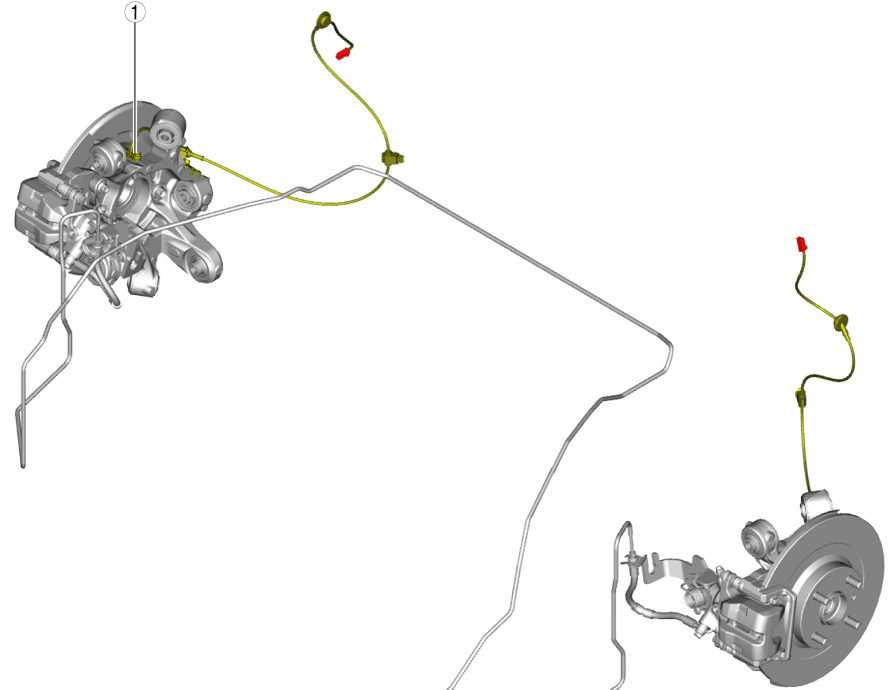

Vehicle Rear Side

1

Rear ABS wheel-speed sensor

(See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.)

(See REAR ABS WHEEL-SPEED SENSOR INSPECTION.)
