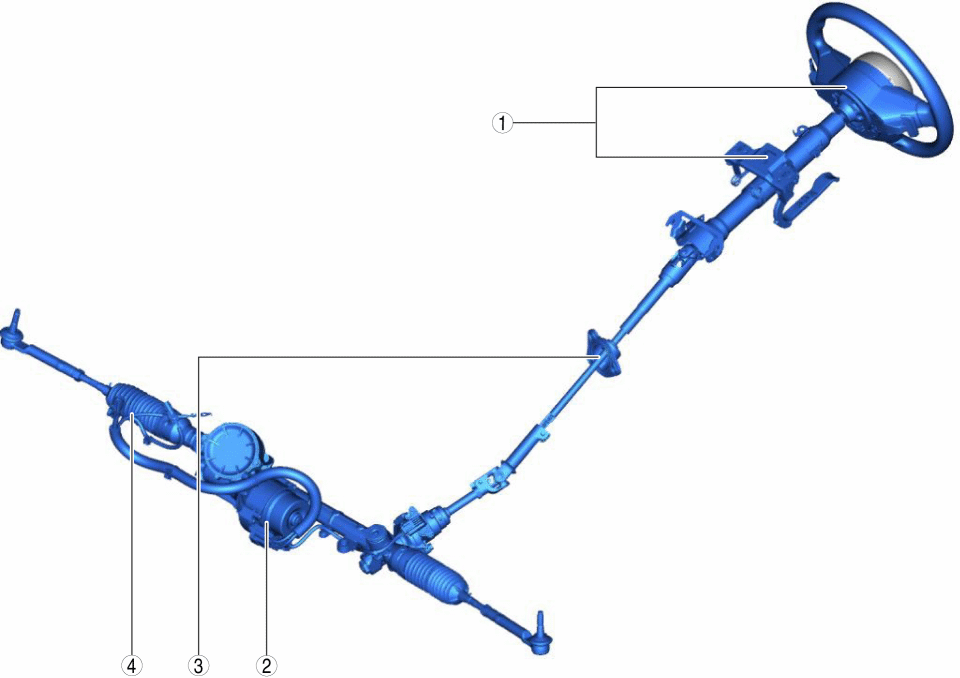

STEERING LOCATION INDEX

1

Steering wheel and column

(See STEERING WHEEL AND COLUMN INSPECTION.)

(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(See STEERING WHEEL SIDE COVER REMOVAL/INSTALLATION.)

(See STEERING WHEEL BEZEL REMOVAL/INSTALLATION.)

(See STEERING WHEEL COVER REMOVAL/INSTALLATION.)

(See STEERING SHAFT INSPECTION.)

2

EPS CM

(See ELECTRIC POWER STEERING (EPS) CONTROL MODULE REMOVAL/INSTALLATION.)

(See ELECTRIC POWER STEERING (EPS) SHORT CORD REMOVAL/INSTALLATION.)

(See EPS CONTROL MODULE INSPECTION.)

3

Intermediate shaft

(See INTERMEDIATE SHAFT REMOVAL/INSTALLATION.)

4

Steering gear and linkage

(See TIE-ROD END REPLACEMENT.)

(See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION.)

(See STEERING GEAR AND LINKAGE INSPECTION.)

(See STEERING GEAR AND LINKAGE DISASSEMBLY.)

(See TIE-ROD END INSPECTION.)

(See TIE ROD INSPECTION.)

(See STEERING GEAR AND LINKAGE ASSEMBLY.)
