DTC U3003:16 [FORWARD SENSING CAMERA (FSC)]

Description	Forward sensing camera (FSC) low power supply voltage input
Detection condition	Forward sensing camera (FSC) power supply circuit voltage of 8.0 ± 0.8 V or less is detected for 5 s or more with the ignition switched ON (engine off or on).
Fail-safe	Inhibits the lane departure warning system (LDWS). Inhibits the high beam control (HBC) system.

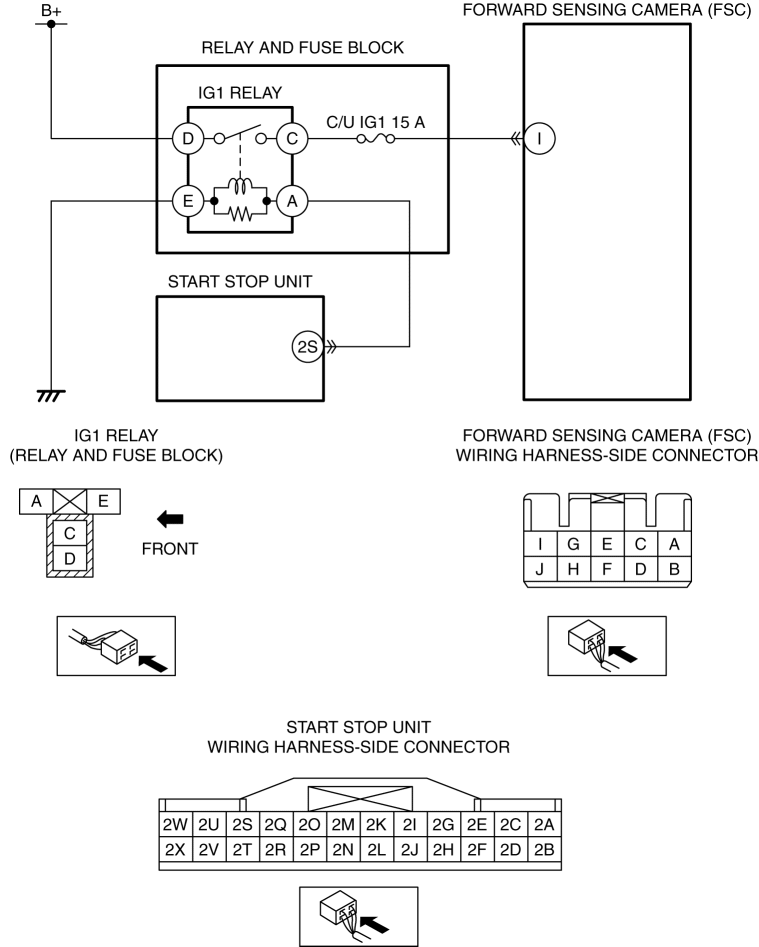

Possible cause	DTCs are stored in the PCM. Battery malfunction Generator malfunction Forward sensing camera (FSC) connector or terminal malfunction Forward sensing camera (FSC) power supply circuit malfunction Short to ground in wiring harness between C/U IG1 15 A fuse and forward sensing camera (FSC) terminal I C/U IG1 15 A fuse malfunction Open circuit in wiring harness between IG1 relay terminal C and forward sensing camera (FSC) terminal I Forward sensing camera (FSC) malfunction

Diagnostic Procedure

Step	Inspection		Action
1	VERIFY PCM DTCs Retrieve the PCM DTCs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-G 2.0)].) Are any DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-G 2.0)].)
		No	Go to the next step.
2	INSPECT BATTERY Inspect the battery. (See BATTERY INSPECTION.) Is the battery normal?	Yes	Go to the next step.
		No	Recharge or replace the battery, then go to Step 6. (See BATTERY RECHARGING.) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0]1.)
3	INSPECT GENERATOR Inspect the generator. (See GENERATOR INSPECTION [SKYACTIV-G 2.0].) Is the generator normal?	Yes	Go to the next step.
		No	Replace the generator, then go to Step 6. (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
4	INSPECT FORWARD SENSING CAMERA (FSC) CONNECTOR CONDITION Switch the ignition off. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) Disconnect the forward sensing camera (FSC) connector. Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. Is the connector normal?	Yes	Go to the next step.
		No	Repair or replace the connector, then go to Step 6.
5	VERIFY FORWARD SENSING CAMERA (FSC) POWER SUPPLY VOLTAGE Always reconnect all disconnected connectors. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) Display the PID VPWR_IG1 using the M-MDS. (See PID/DATA MONITOR INSPECTION [FORWARD SENSING CAMERA (FSC)].) Is the voltage B+?	Yes	Go to the next step.
		No	Inspect the C/U IG1 15 A fuse. If the fuse is blown: Refer to the wiring diagram and verify whether or not there is a common connector between C/U IG1 15 A fuse and forward sensing camera (FSC) terminal I. If there is a common connector: Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. Repair or replace the malfunctioning part. If there is no common connector: Repair or replace the wiring harness which has a short to ground. Replace the fuse. If the fuse is damaged: Replace the fuse. If the fuse is normal: Refer to the wiring diagram and verify whether or not there is a common connector between IG1 relay terminal C and forward sensing camera (FSC) terminal I. If there is a common connector: Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. Repair or replace the malfunctioning part. If there is no common connector: Repair or replace the wiring harness which has an open circuit. Go to the next step.
6	VERIFY THAT REPAIRS HAVE BEEN COMPLETED Always reconnect all disconnected connectors. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) Clear the DTC for the forward sensing camera (FSC) using the M-MDS. (See CLEARING DTC [FORWARD SENSING CAMERA (FSC)].) Switch the ignition ON (engine off or on) and wait for 6.5 s or more. Retrieve the forward sensing camera (FSC) DTCs using the M-MDS. (See DTC INSPECTION [FORWARD SENSING CAMERA (FSC)].) Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. If the malfunction recurs, replace the forward sensing camera (FSC). (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.) Go to the next step.
		No	Go to the next step.
7	VERIFY IF OTHER DTCs DISPLAYED Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [FORWARD SENSING CAMERA (FSC)].)
		No	DTC troubleshooting completed.
