DTC U3003:16 [ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE]

Description	Adaptive front lighting system (AFS) control module low power supply voltage input
Detection condition	Adaptive front lighting system (AFS) control module power supply circuit voltage of 9.8 V or less is detected for 5 s or more with the ignition switched ON (engine off or on).
Fail-safe	Control of the adaptive front lighting system (AFS) is continued. The headlight leveling actuator is stopped at the position when the malfunction is determined.

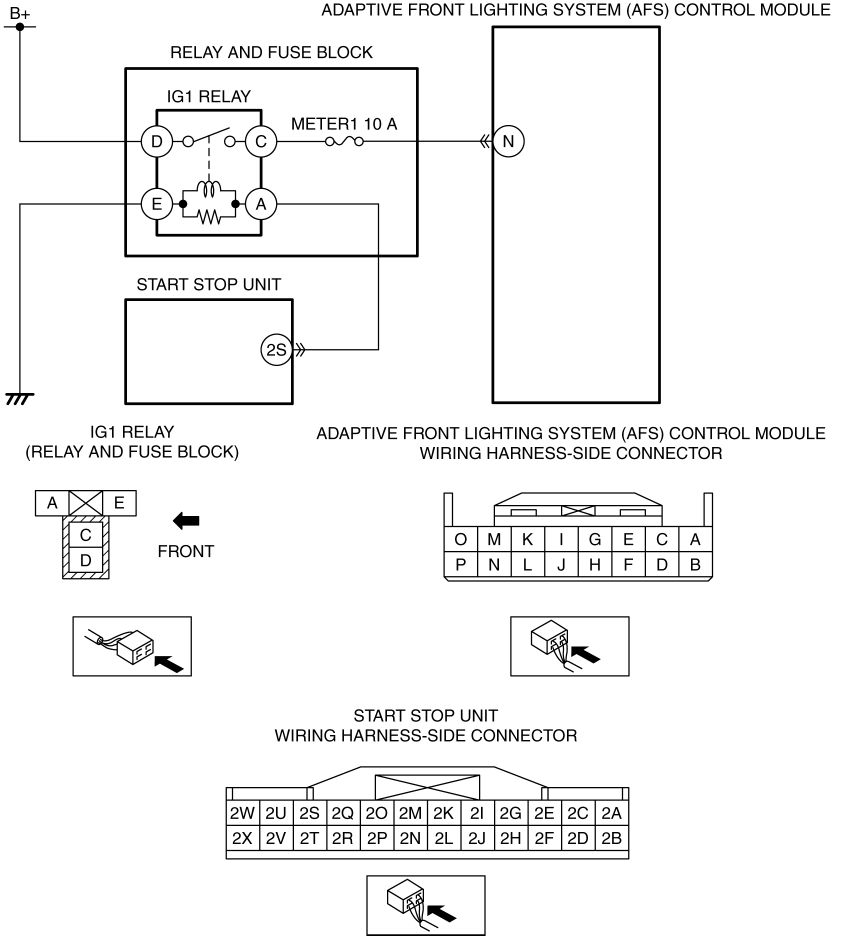

Possible cause	DTCs are stored in the PCM. Battery malfunction Generator malfunction Adaptive front lighting system (AFS) control module connector or terminal malfunction Adaptive front lighting system (AFS) control module power supply circuit malfunction Short to ground in wiring harness between METER1 10 A fuse and adaptive front lighting system (AFS) control module terminal N METER1 10 A fuse malfunction Open circuit in wiring harness between IG1 relay terminal C and adaptive front lighting system (AFS) control module terminal N Adaptive front lighting system (AFS) control module malfunction

Diagnostic Procedure

Step	Inspection		Action
1	VERIFY PCM DTCs Retrieve the PCM DTCs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-G 2.0)].) Is the DTC displayed?	Yes	Repair the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-G 2.0)].)
		No	Go to the next step.
2	INSPECT BATTERY Inspect the battery. (See BATTERY INSPECTION.) Is the battery normal?	Yes	Go to the next step.
		No	Recharge or replace the battery, then go to Step 6. (See BATTERY RECHARGING.) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
3	INSPECT GENERATOR Inspect the generator. (See GENERATOR INSPECTION [SKYACTIV-G 2.0].) Is the generator normal?	Yes	Go to the next step.
		No	Replace the generator, then go to Step 6. (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
4	INSPECT ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE CONNECTOR CONDITION Switch the ignition off. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) Disconnect the adaptive front lighting system (AFS) control module connector. Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. Is the connector normal?	Yes	Go to the next step.
		No	Repair or replace the connector, then go to Step 6.
5	VERIFY ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE POWER SUPPLY VOLTAGE Always reconnect all disconnected connectors. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) Display PID VPWR_IG using the M-MDS. (See PID/DATA MONITOR INSPECTION [ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE].) Is the voltage B+?	Yes	Go to the next step.
		No	Inspect the METER1 10 A fuse. If the fuse is blown: Refer to the wiring diagram and verify whether or not there is a common connector between METER1 10 A fuse and adaptive front lighting system (AFS) control module terminal N. If there is a common connector: Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. Repair or replace the malfunctioning part. If there is no common connector: Repair or replace the wiring harness which has a short to ground. Replace the fuse. If the fuse is damaged: Replace the fuse. If the fuse is normal: Refer to the wiring diagram and verify whether or not there is a common connector between IG1 relay terminal C and adaptive front lighting system (AFS) control module terminal N. If there is a common connector: Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. Repair or replace the malfunctioning part. If there is no common connector: Repair or replace the wiring harness which has an open circuit. Go to the next step.
6	VERIFY THAT REPAIRS HAVE BEEN COMPLETED Always reconnect all disconnected connectors. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) Clear the adaptive front lighting system (AFS) control module DTCs using the M-MDS. (See CLEARING DTC [ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE].) Switch the ignition ON (engine off or on) and wait for 5 s or more. Retrieve the adaptive front lighting system (AFS) control module DTCs using the M-MDS. (See DTC INSPECTION [ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE].) Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. If the malfunction recurs, replace the adaptive front lighting system (AFS) control module, then go to the next step. (See ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE REMOVAL/INSTALLATION.)
		No	Go to the next step.
7	VERIFY IF OTHER DTCs DISPLAYED Are any other DTCs displayed?	Yes	Repair the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE].)
		No	DTC troubleshooting completed.
