DTC P0615:12 [START STOP UNIT]

Description	Starter relay circuit malfunction
Detection condition	Start stop unit detects that the starter relay circuit voltage of specification or more for 0.1 s or more with the ignition switched off.
Fail-safe	Inhibits switching the ignition ON (engine off or on). Inhibits the engine start.

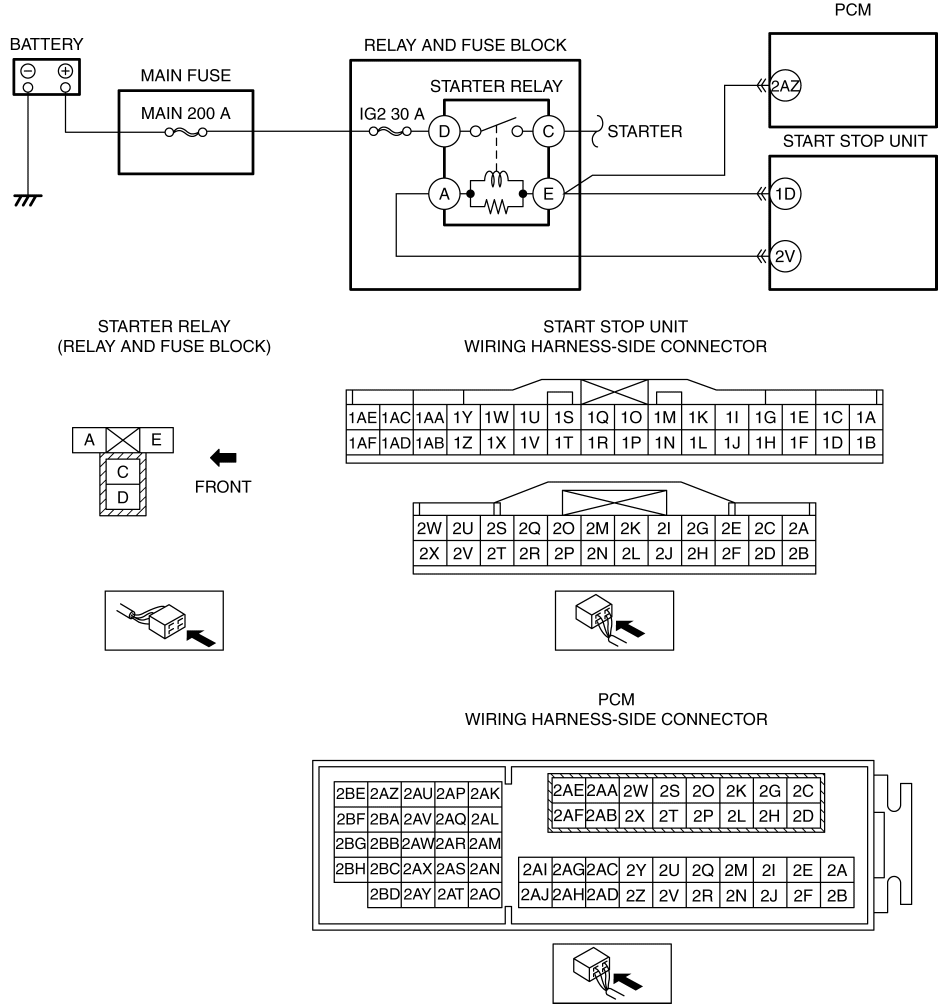

Possible cause	DTCs are stored in the PCM. Starter relay malfunction Start stop unit connector or terminal malfunction PCM connector malfunction Short to power supply in wiring harness between the following terminals: Start stop unit terminal 1D—Starter relay terminal E Starter relay terminal E—PCM terminal 2AZ Start stop unit terminal 2V—Starter relay terminal A PCM malfunction Start stop unit malfunction

Diagnostic Procedure

Step	Inspection		Action
1	VERIFY PCM DTCs Retrieve the PCM DTCs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-G 2.0)].) Are any DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-G 2.0)].)
		No	Go to the next step.
2	INSPECT STARTER RELAY Switch the ignition off. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) Remove the starter relay. (See RELAY LOCATION.) Inspect the starter relay. (See RELAY INSPECTION.) Is the starter relay normal?	Yes	Go to the next step.
		No	Replace the starter relay, then go to Step 7. (See RELAY LOCATION.)
3	INSPECT START STOP UNIT CONNECTOR CONDITION Disconnect the start stop unit connector. Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. Is the connector normal?	Yes	Go to the next step.
		No	Repair or replace the connector, then go to Step 7.
4	INSPECT PCM CONNECTOR CONDITION Disconnect the PCM connector. Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. Is the connector normal?	Yes	Go to the next step.
		No	Repair or replace the connector, then go to Step 7.
5	INSPECT STARTER RELAY CIRCUIT FOR SHORT TO POWER SUPPLY Verify that the starter relay is removed. Verify that the start stop unit and PCM connectors are disconnected. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) Measure the voltage at the following terminals (wiring harness-side): Start stop unit terminal 1D Start stop unit terminal 2V Is the voltage 0 V?	Yes	Go to the next step.
		No	Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals: Start stop unit terminal 1D—Starter relay terminal E Starter relay terminal E—PCM terminal 2AZ Start stop unit terminal 2V—Starter relay terminal A If there is a common connector: Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply. Repair or replace the malfunctioning part. If there is no common connector: Repair or replace the wiring harness which has a short to power supply. Go to Step 7.
6	VERIFY IF MALFUNCTIONING LOCATION IS PCM DEPENDING ON REPEATABILITY Always reconnect all disconnected connectors. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) Clear the DTC for the start stop unit using the M-MDS. (See CLEARING DTC [START STOP UNIT].) Switch the ignition off and wait for 1 s or more. Retrieve the start stop unit DTCs using the M-MDS. (See DTC INSPECTION [START STOP UNIT].) Is the same DTC displayed?	Yes	Replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
		No	Go to Step 8.
7	VERIFY THAT REPAIRS HAVE BEEN COMPLETED Always reconnect all disconnected connectors. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) Clear the DTC for the start stop unit using the M-MDS. (See CLEARING DTC [START STOP UNIT].) Switch the ignition off and wait for 1 s or more. Retrieve the start stop unit DTCs using the M-MDS. (See DTC INSPECTION [START STOP UNIT].) Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. If the malfunction recurs, replace the start stop unit. (See START STOP UNIT REMOVAL/INSTALLATION.) Go to the next step.
		No	Go to the next step.
8	VERIFY IF OTHER DTCs DISPLAYED Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [START STOP UNIT].)
		No	DTC troubleshooting completed.
