OUTER MIRROR GLASS INSPECTION

Heated Outer Mirror

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

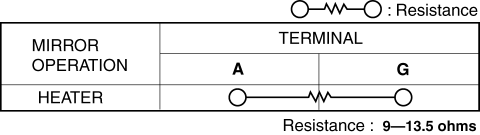

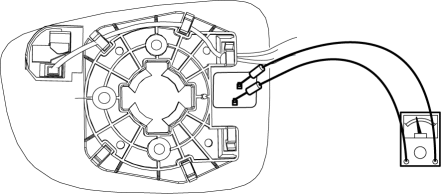

3. Verify that the resistance and continuity between the heated outer mirror terminals is as indicated in the table.

Blind Spot Monitoring (BSM) Warning Light

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

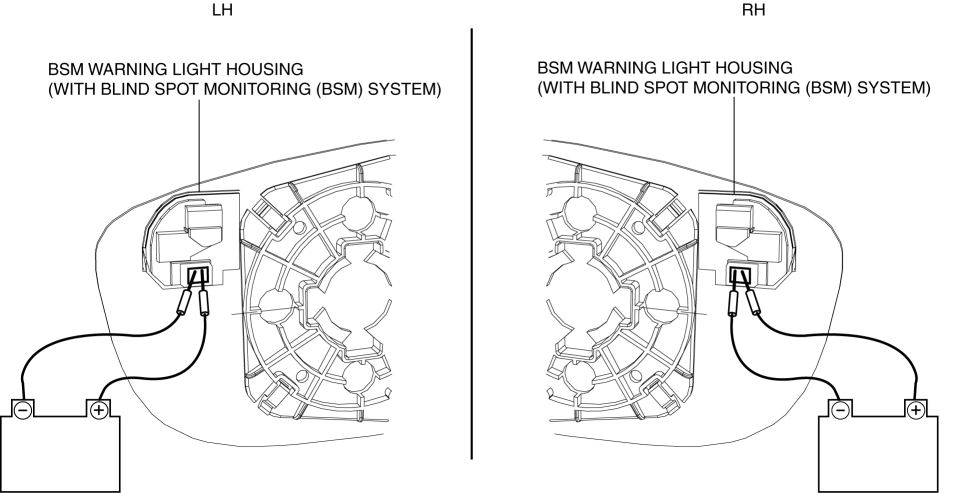

3. Connect the battery voltage as shown in the figure.

Auto-dimming Outer Mirror

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

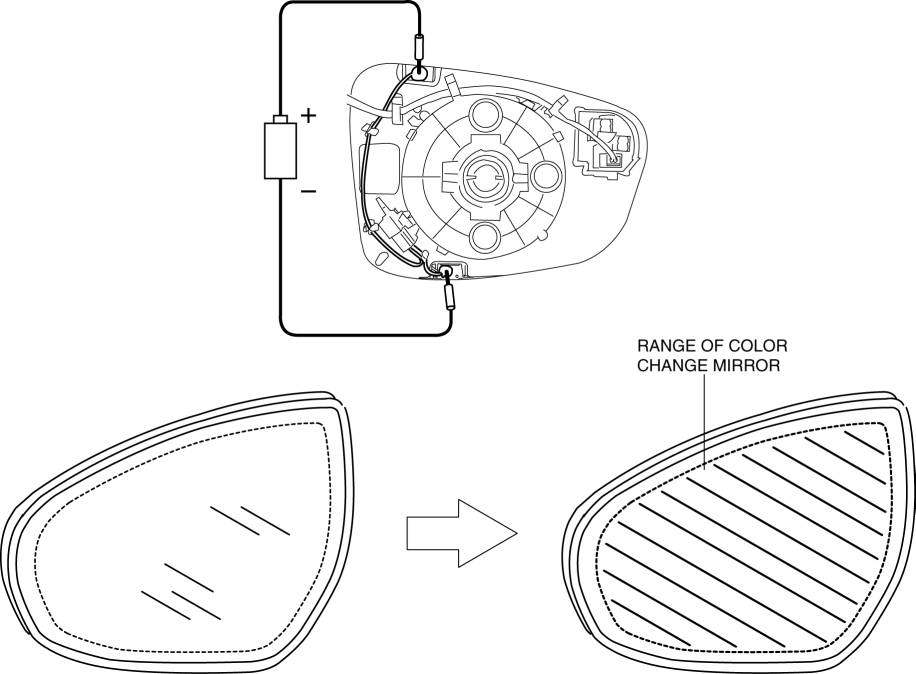

3. Connect the dry cell batteries (1.2 V) in a series.

  • Verify that the mirror side of the outer mirror glass changes color.

4. If there is any malfunction, replace the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)
