PUSH BUTTON START INSPECTION

Resistance Inspection

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:
a. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)
b. Shift lever knob (MT)
c. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION.)
d. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
e. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)
f. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
g. Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)
h. Front console component (See FRONT CONSOLE REMOVAL/INSTALLATION.)
i. Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)
j. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
k. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
l. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
m. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
n. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
o. Center panel No.1 (See CENTER PANEL No.1 REMOVAL/INSTALLATION.)
p. Push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION.)

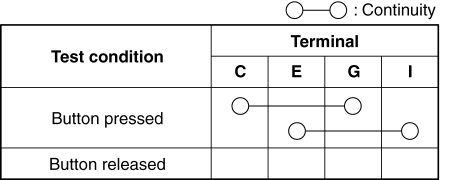

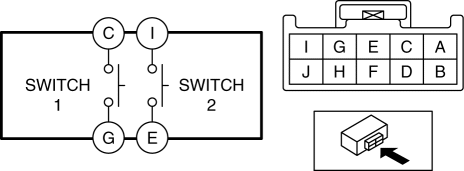

3. Verify that the continuity between the push button start terminals is as indicated in the table.

LED Illumination Inspection

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:
a. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)
b. Shift lever knob (MT)
c. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION.)
d. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
e. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)
f. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
g. Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)
h. Front console component (See FRONT CONSOLE REMOVAL/INSTALLATION.)
i. Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)
j. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
k. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
l. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
m. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
n. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
o. Center panel No.1 (See CENTER PANEL No.1 REMOVAL/INSTALLATION.)
p. Push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION.)

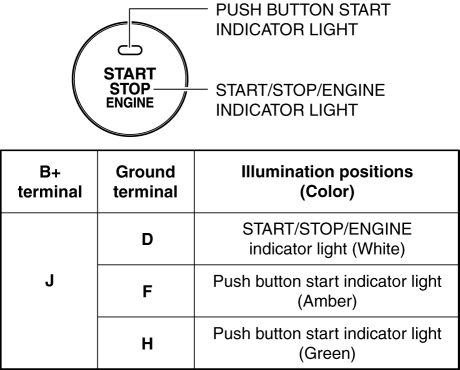

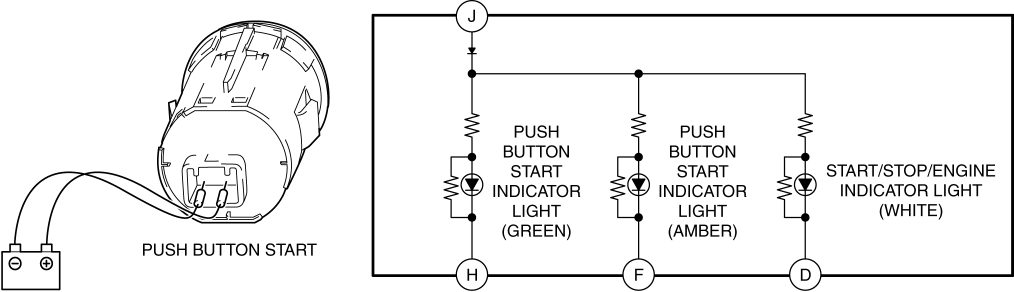

3. Apply battery positive voltage and connect the ground to the push button start terminals and verify that the LED illuminates as indicated in the table.
