SIDE COWL GRILLE REMOVAL/INSTALLATION

1. Remove the wiper arm and blade. (See WIPER ARM AND BLADE REMOVAL/INSTALLATION.)
2. Disconnect washer hose B from joint pipe A. (See WASHER HOSE REMOVAL/INSTALLATION.)
3. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

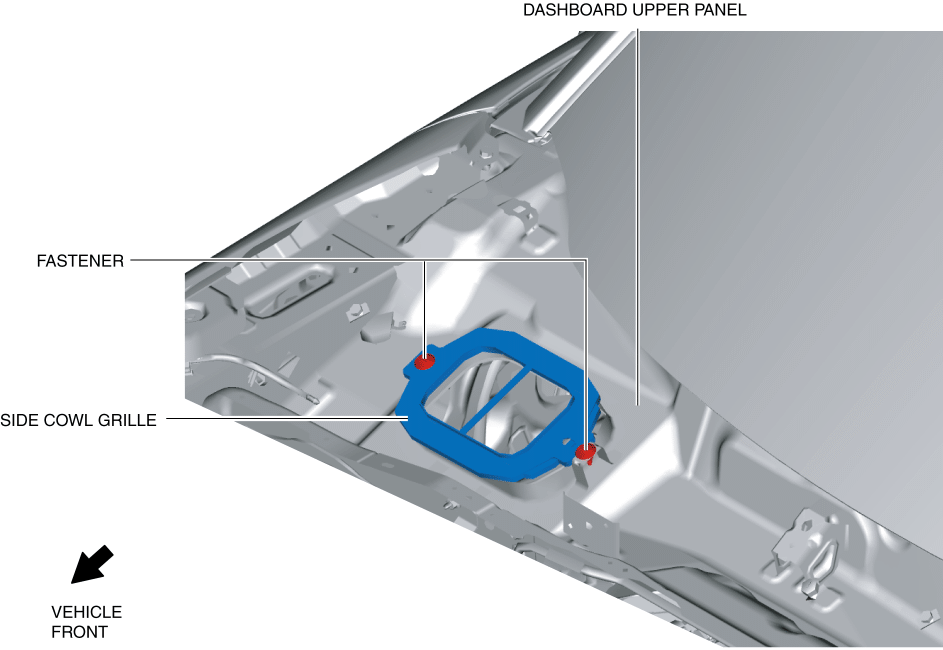

4. Remove the fasteners.

5. Remove the side cowl grille.
6. Install in the reverse order of removal.
