KNEE BOLSTER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2. Install the following parts:

a. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

b. Shift lever knob (MT)

c. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION.)

d. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

e. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)

f. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

g. Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)

h. Front console component (See FRONT CONSOLE REMOVAL/INSTALLATION.)

i. Driver-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

j. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

k. Driver-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

l. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

m. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

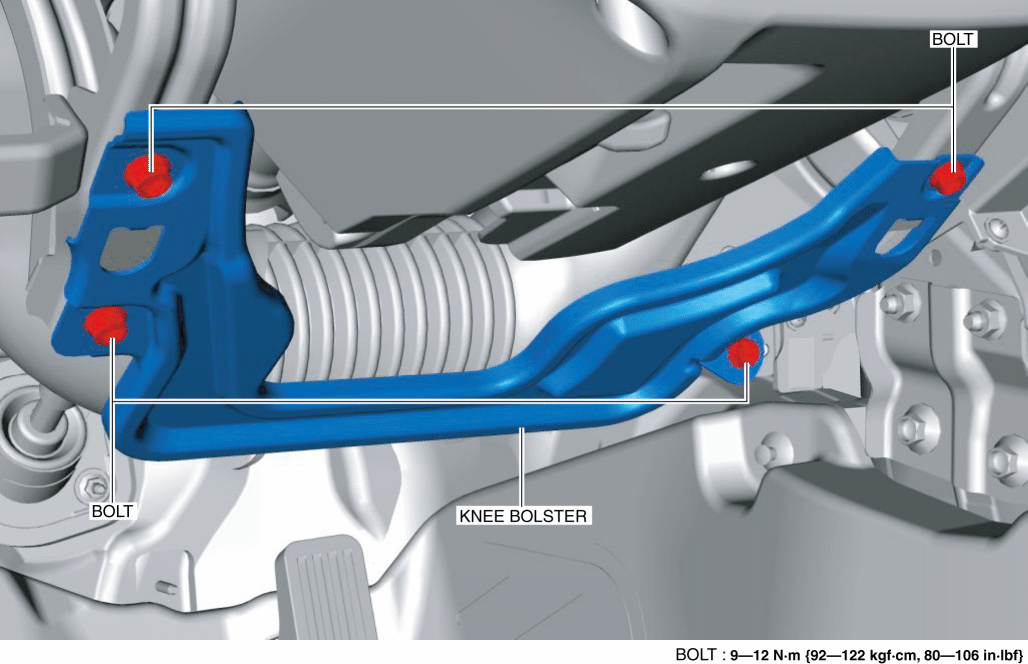

3. Remove the bolts.

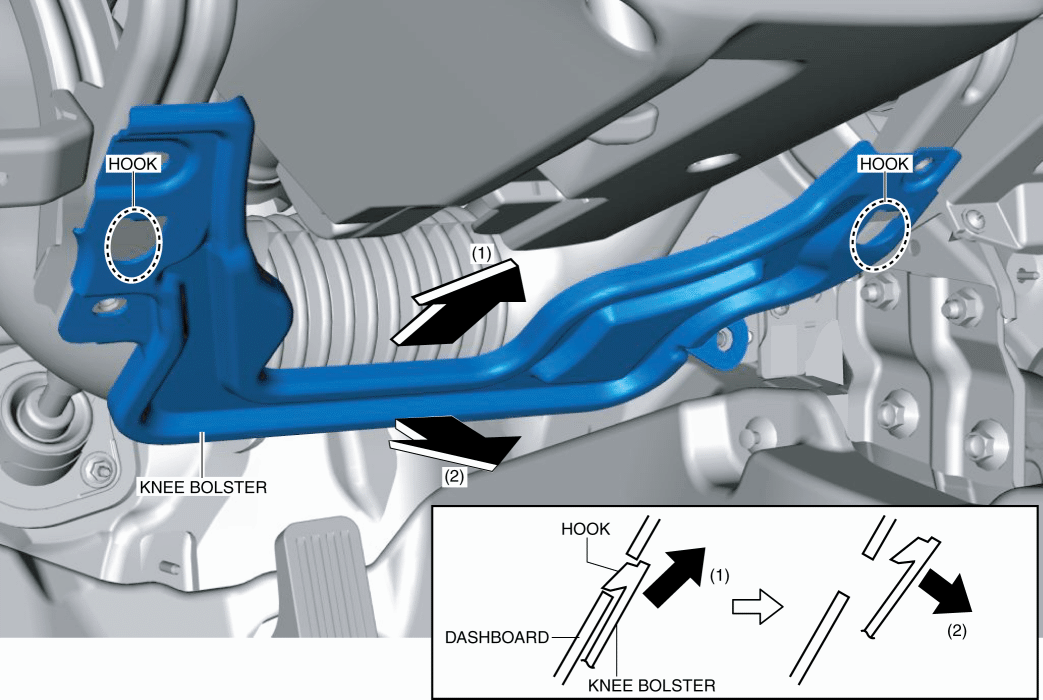

4. Move the knee bolster in the order of arrows (1) and (2) shown in the figure, and detach the hooks from the dashboard.

5. Install in the reverse order of removal.
