MAP LIGHT INSPECTION

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:
a. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
b. Female wedge (See FEMALE WEDGE REMOVAL/INSTALLATION.)
c. Front header trim (See FRONT HEADER TRIM REMOVAL/INSTALLATION.)
d. Map light (See MAP LIGHT REMOVAL/INSTALLATION.)

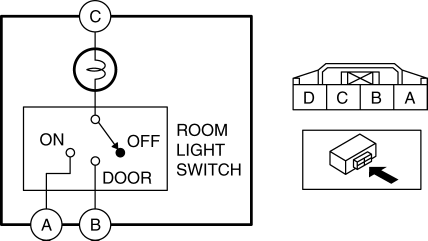

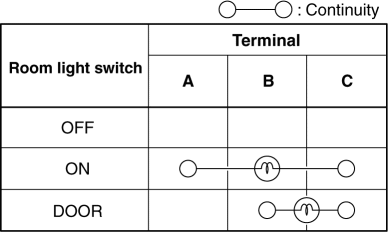

3. Verify that the continuity between the map light terminals is as indicated in the table.

  • If not as indicated in the table, replace the map light bulb or the map light. (See MAP LIGHT BULB REMOVAL/INSTALLATION.) (See MAP LIGHT REMOVAL/INSTALLATION.)
