FRONT SIDE MARKER LIGHT REMOVAL/INSTALLATION

1. Turn the steering wheel to the side where the light is to be removed until it locks.
2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
3. Partially peel back the front mudguard No.1 and front mudguard No.2. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

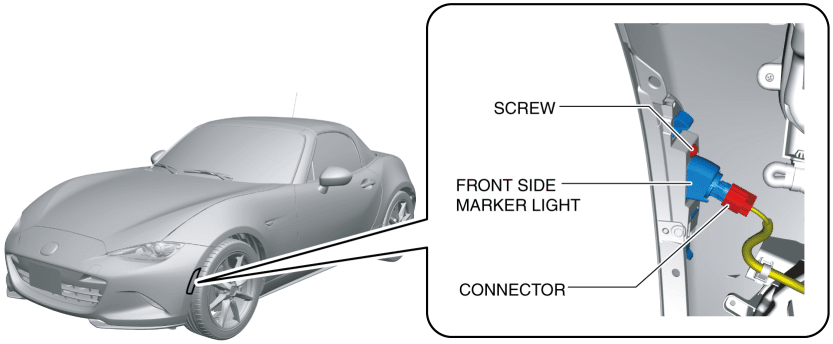

4. Disconnect the connector.

5. Remove the screw.

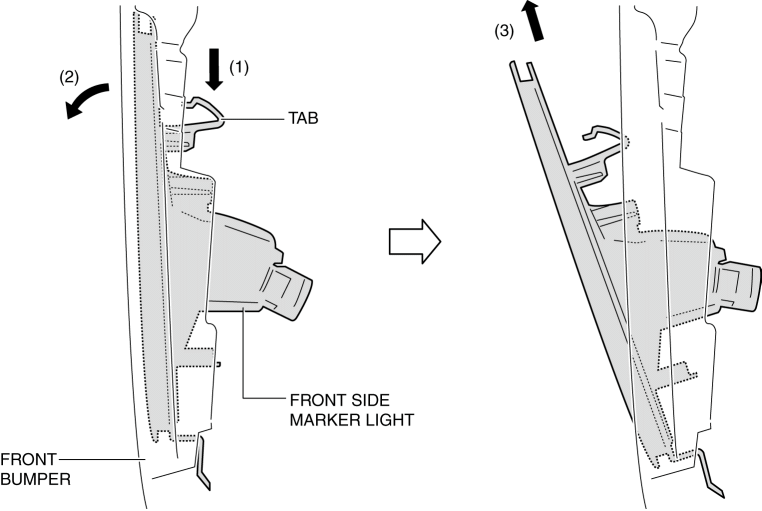

6. While pressing the front side marker light tab in the direction of arrow (1) shown in the figure, pull the front side marker light in the direction of arrow (2) and detach the front side marker light tab from the front bumper.

7. Pull the front side marker light in the direction of arrow (3) shown in the figure and remove it from the front bumper.
8. Install in the reverse order of removal.
