SEAT BACK COMPONENT REMOVAL/INSTALLATION

WARNING:

1. Disconnect the negative battery cable and wait for 1 min or more.(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:
a. Seat (See SEAT REMOVAL/INSTALLATION.)
b. Seat side cover(See SEAT SIDE COVER REMOVAL/INSTALLATION.)
c. Buckle(See BUCKLE REMOVAL/INSTALLATION.)

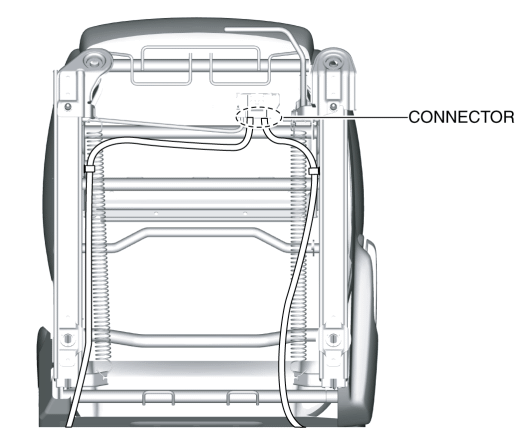

3. Disconnect the connectors.

4. Pull out the wiring harness clip.

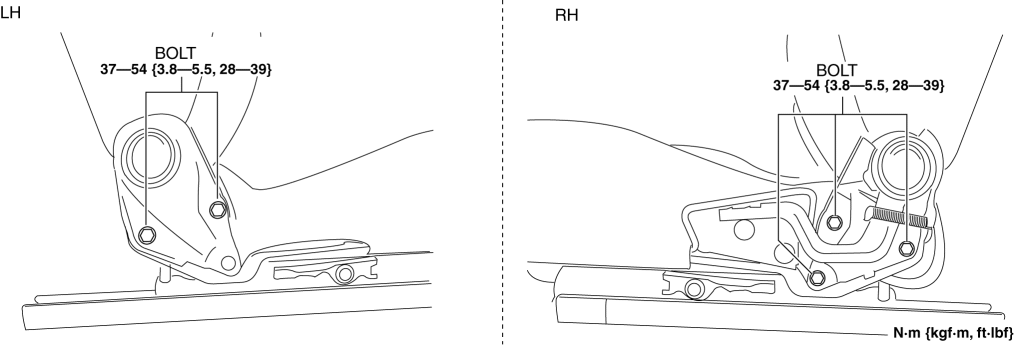

5. Remove the bolts.

6. Remove the seat back component.
7. Install in the reverse order of removal.
