FUEL TANK [SKYACTIV-G 2.0]

Purpose, Function

The fuel tank stores fuel safely.

Construction

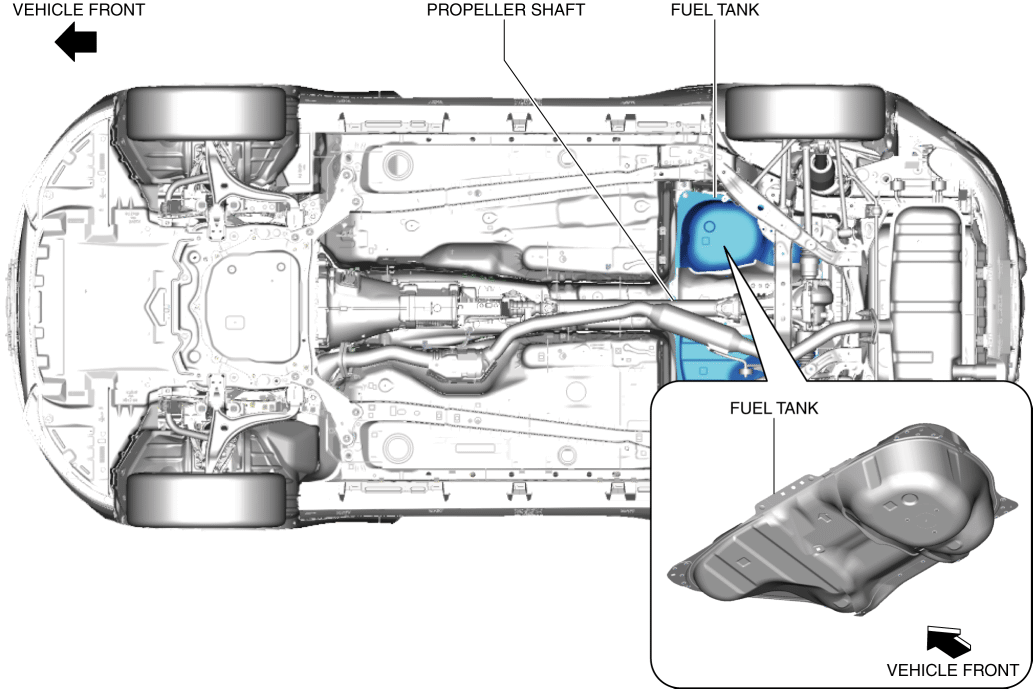

The fuel tank is located at the rear of the vehicle.

The fuel tank is a saddle type because there is a propeller shaft.

The fuel tank is made of steel.

The following parts are integrated in the fuel tank.

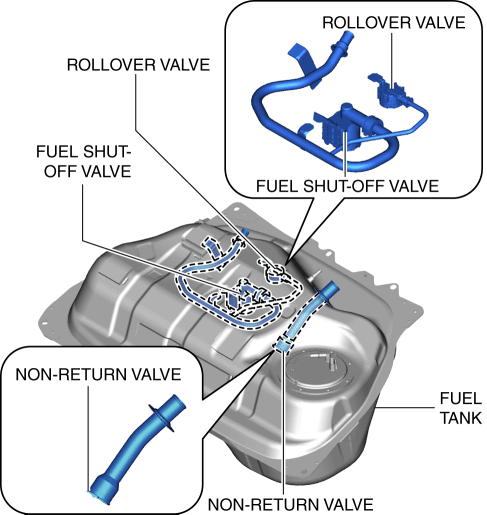

U.S.A. and CANADA specs.

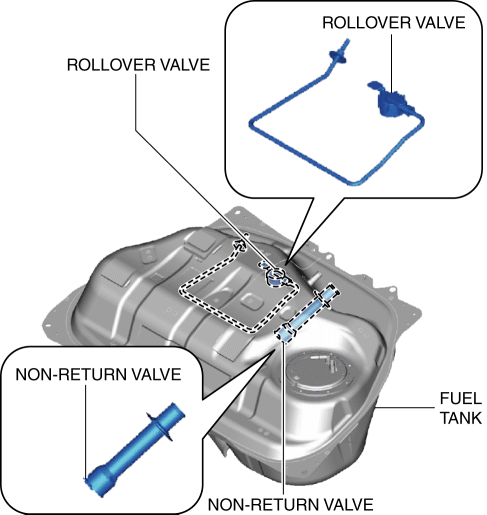

Except U.S.A. and CANADA specs.

Non-return valve

(See NON-RETURN VALVE [SKYACTIV-G 2.0].)

Rollover valve

(See ROLLOVER VALVE [SKYACTIV-G 2.0].)

Fuel shut-off valve (U.S.A. and CANADA specs.)

(See FUEL SHUT-OFF VALVE [SKYACTIV-G 2.0].)
