IGNITION SYSTEM [SKYACTIV-G 2.0]

Outline

  • A direct ignition system for independent ignition control has been adopted to control voltage depletion and to stabilize the ignition performance of the spark plug.

  • The ion sensor is built into the ignition coil to detect pre-ignition.

  • Iridium spark plugs have been adopted to enhance ignition performance.

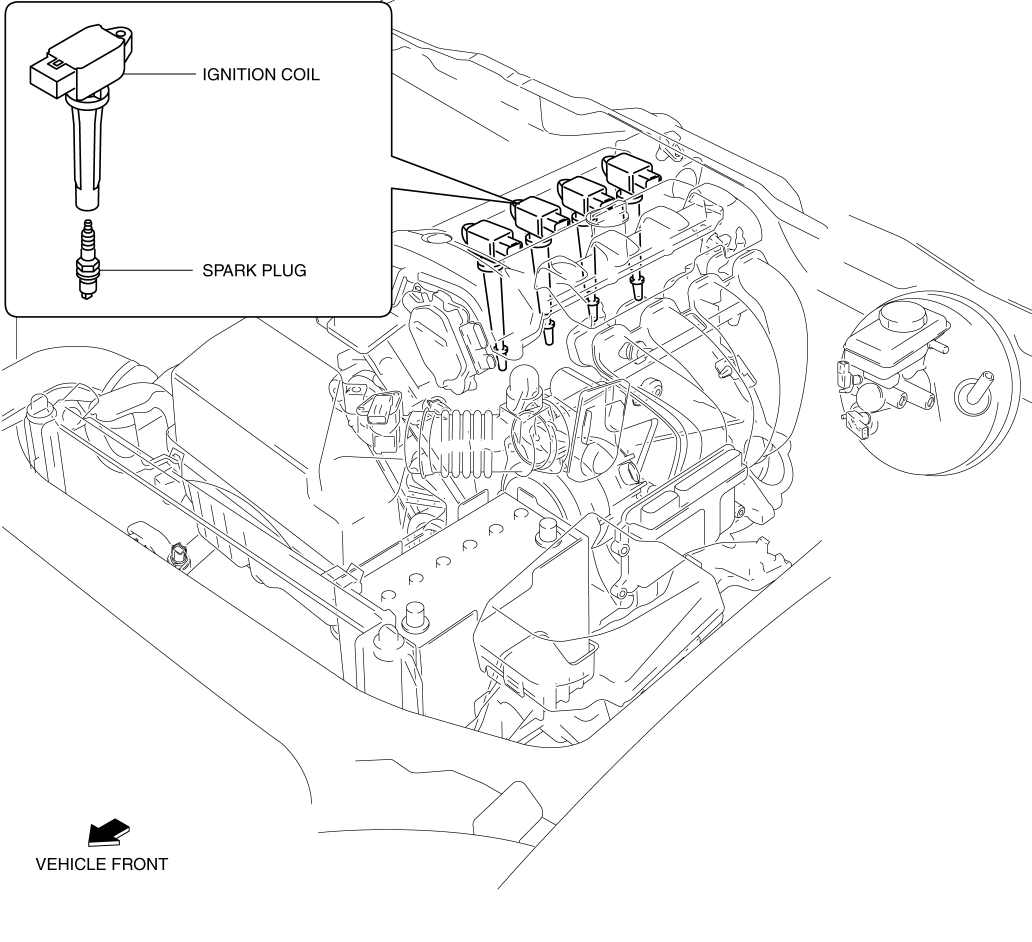

Structural View

Structure

  • Consists of the following parts:

Spark plug

Ignition coil
