COUPLER COMPONENT

Outline

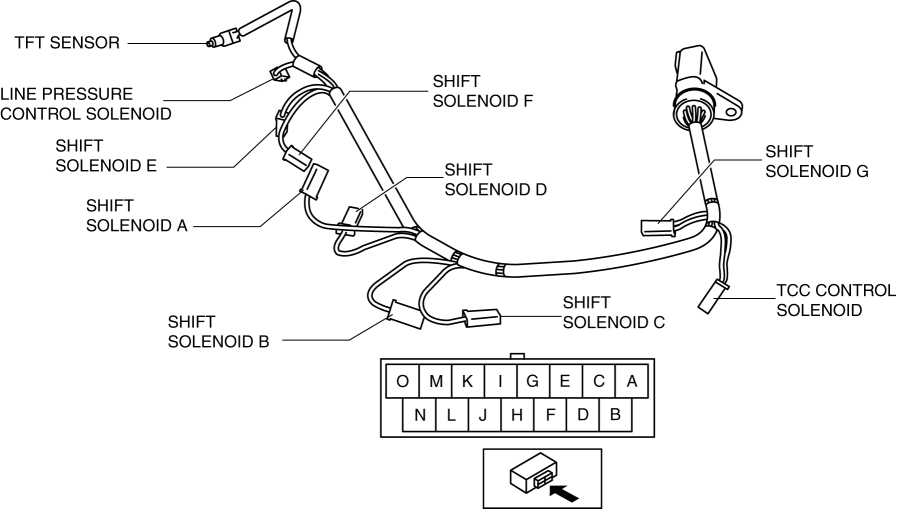

  • The coupler component are installed on the transmission case as the grouped connectors of the TFT sensor and solenoids.

  • Its component parts are as follows:

Terminal No.

Signal

A

TFT sensor (-)

B

TFT sensor (+)

C

Shift solenoid G (-)

D

Shift solenoid G (+)

E

Shift solenoid F (-)

F

Shift solenoid F (+)

G

TCC control solenoid (-)

H

TCC control solenoid (+)

I

Line pressure control solenoid (-)

J

Line pressure control solenoid (+)

K

Shift solenoid E

L

Shift solenoid D

M

Shift solenoid C

N

Shift solenoid B

O

Shift solenoid A
