POWER OUTER MIRROR SYSTEM
Outline
The driver can operate the outer mirrors remotely by operating the power outer mirror switch.
Function
Outer mirror glass adjustment function
Outer mirror glass can be adjusted up/down and left/right electrically by operating the power outer mirror switch.
Structural View

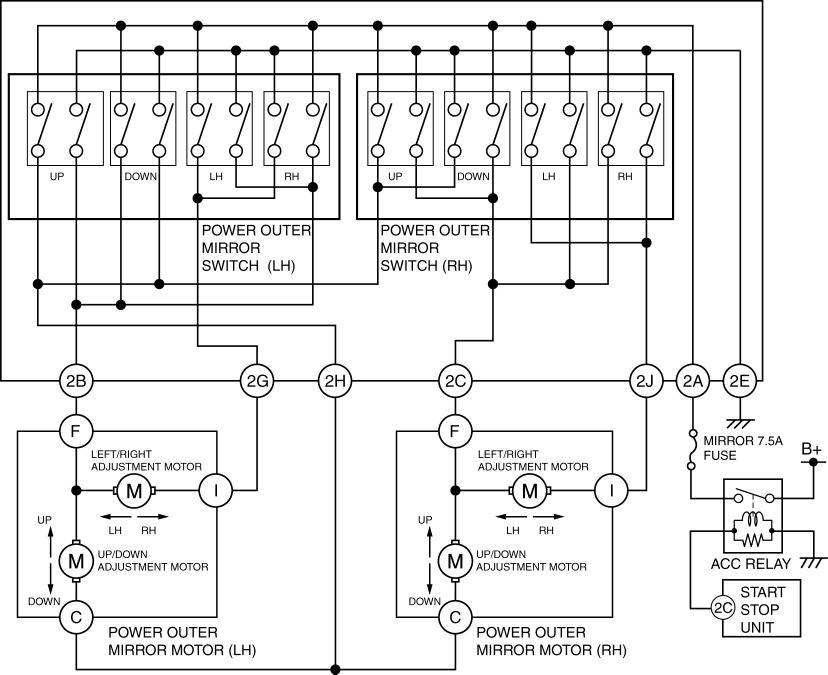

System Wiring Diagram
Operation

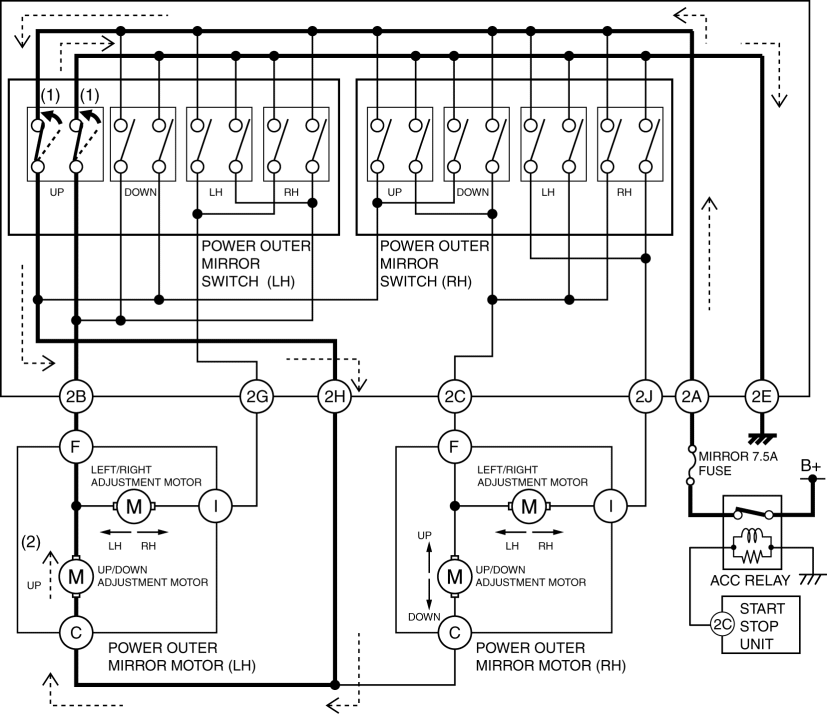

Outer mirror glass adjustment operation (Example: adjusting left outer mirror upward)
When the upward switch turns on (1), the up/down adjustment motor operates upward (2) and the outer mirror operates upward.
Fail-safe
< Previous Next >
Not applicable
