POWER OUTER MIRROR SWITCH

Purpose

  • The switch turns on/off in conjunction with the driver's switch operation and switches the power outer mirror angle adjustment circuit contact point.

Function

Up-down/left-right adjustment function

  • The power outer mirror switch switches the contact point according to the switch operation. As a result, the circuit to the up-down/left-right adjustment motor is switched.

Left/right selection function

  • The power outer mirror switch is used to select the side on which adjustment of the power outer mirror glass is desired.

Construction

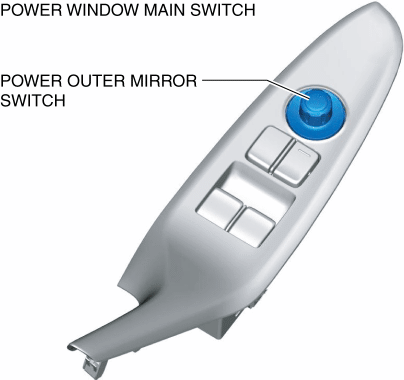

  • The power outer mirror switch consists of the following parts.

    • Up-down/left-right adjustment switch

    • Left/right selection switch

Operation

Ex: Switch is pressed in the upward direction

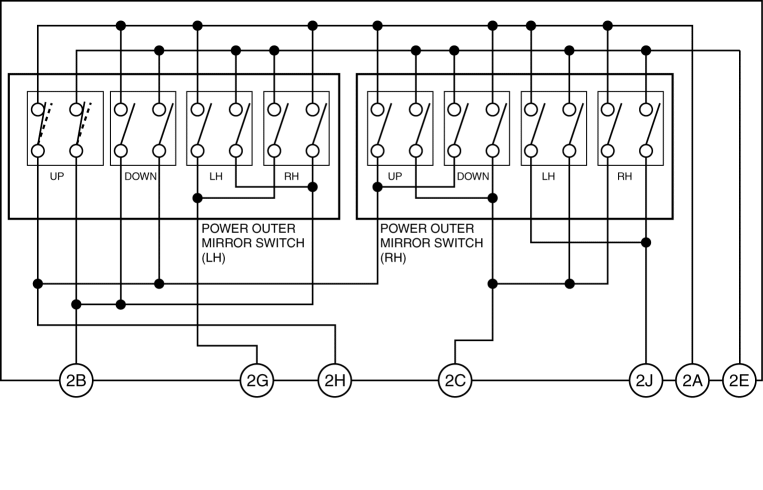

  • By operating the power outer mirror switch, the up-down/left-right contact points for the power outer mirror are switched.

Fail-safe

  • Not applicable
