STEERING SWITCH [WITH CENTER DISPLAY]

Purpose, Function

  • Operation of the entertainment system and changing of the trip computer system display are possible without a change in driving posture.

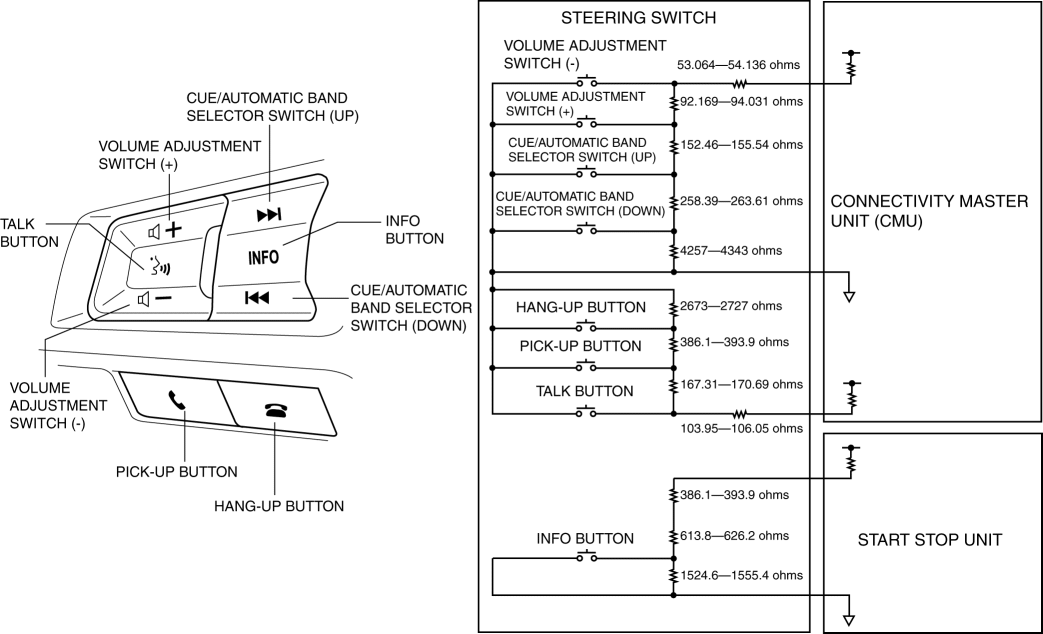

Construction

  • The steering switch is located on the spoke of the steering wheel.

  • The resistance is built into each switch.

  • The steering switch consists of the following buttons and switches.

    • Volume adjustment switch (+) and (-)

    • Cue/automatic band selector (up) and (down)

    • INFO button

    • Talk button

    • Pick-up button

    • Hang-up button

Operation

Switch name

Operation

Volume adjustment switch

Audio volume can be adjusted.

Cue/Automatic band selector switch

Cues the CD or switches radio stations.

INFO button

Trip computer system display can be changed. For the display content, refer to the [TRIP COMPUTER INFORMATION SYSTEM]. (See TRIP COMPUTER INFORMATION SYSTEM.)

Talk button

Initiates voice recognition mode.

Pick-up button
    During incoming call

  • Receives phone call

    Other than during incoming call

  • Switches display of center display to call history screen.

Hang-up button

Hangs up the phone call.

Fail-safe

  • Not applicable
