SriusXM SATELLITE RADIO ANTENNA [WITH CENTER DISPLAY]

Purpose, Function

  • Converts Satellite radio broadcast waves to electric signals and sends the signals to the tuner and amp unit (TAU).

Construction

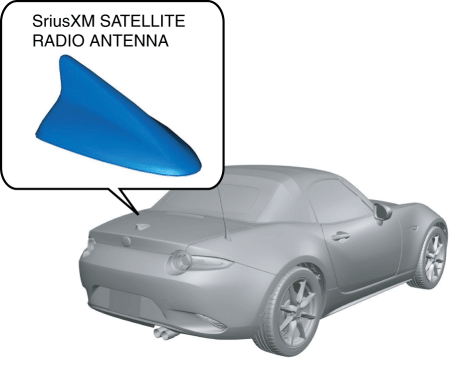

  • A SiriusXM satellite radio antenna has been adopted which does not require retraction or removal before going through an automatic car wash machine.

  • The SiriusXM satellite radio antenna has an integrated antenna amplifier which amplifies the electric signal.

Operation

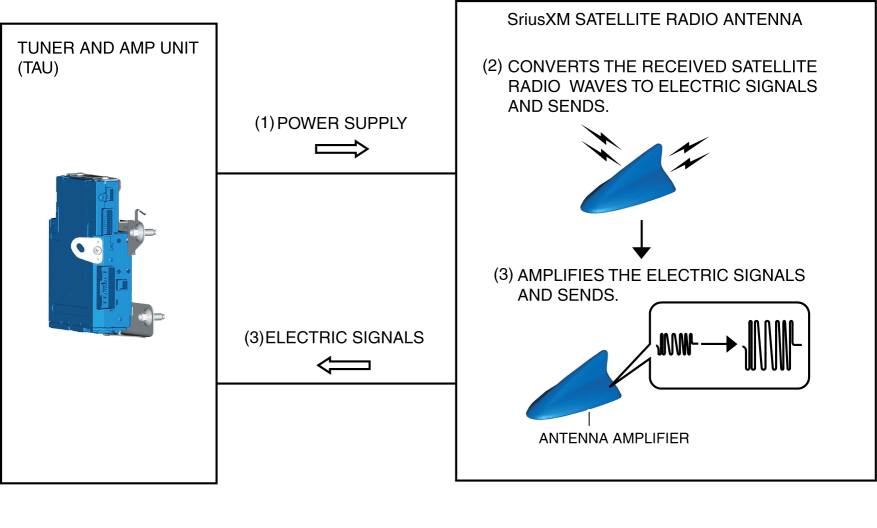

  • The TAU supplies (1) power to the antenna amplifier in the center roof antenna.

  • The center roof antenna converts (2) the received radio waves of a radio broadcast to an electric signal.

  • The center roof antenna amplifies the converted electric signal using the antenna amplifier and sends (3) the signal to the TAU.

Fail-safe

  • Not applicable
