CD PLAYER [WITH CENTER DISPLAY]

Purpose, Function

  • The CD player sends the inserted CD file information to the connectivity master unit (CMU), and an audio signal to the tuner and amp unit (TAU).

Specification

Type

Playback function file

Music/MP3/WMA/AAC CD player

  • Music data (CD-DA)

  • MP3/WMA (Windows Media Audio)/AAC (Advanced Audio Coding) files

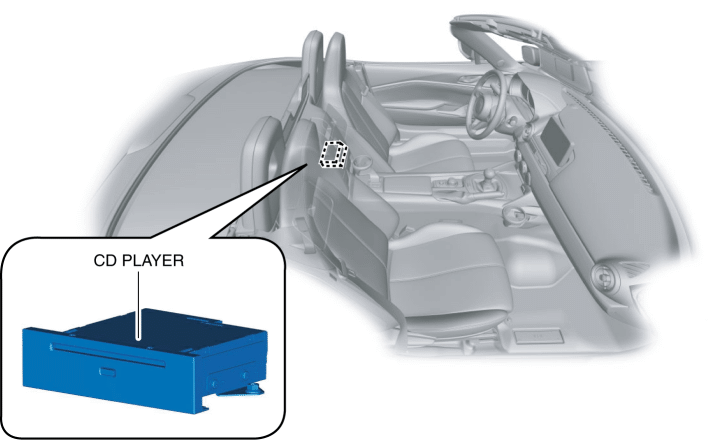

Construction

  • The CD player is located centrally inside the back trim.

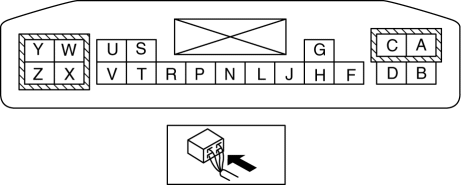

Input/output signal table

Terminal

Signal

A

Ground

B

—

C

—

D

Illumination power supply (-)

F

—

G

Local MS-CAN_H

H

Local MS-CAN_L

J

—

L

CD audio output LH (+)

N

CD audio output LH (-)

P

CD audio output RH (+)

R

CD audio output RH (-)

S

—

T

—

U

—

V

—

W

TNS (Parking Lights) signal input

X

—

Y

ACC

Z

B+

Operation

Fail-safe

  • Not applicable
